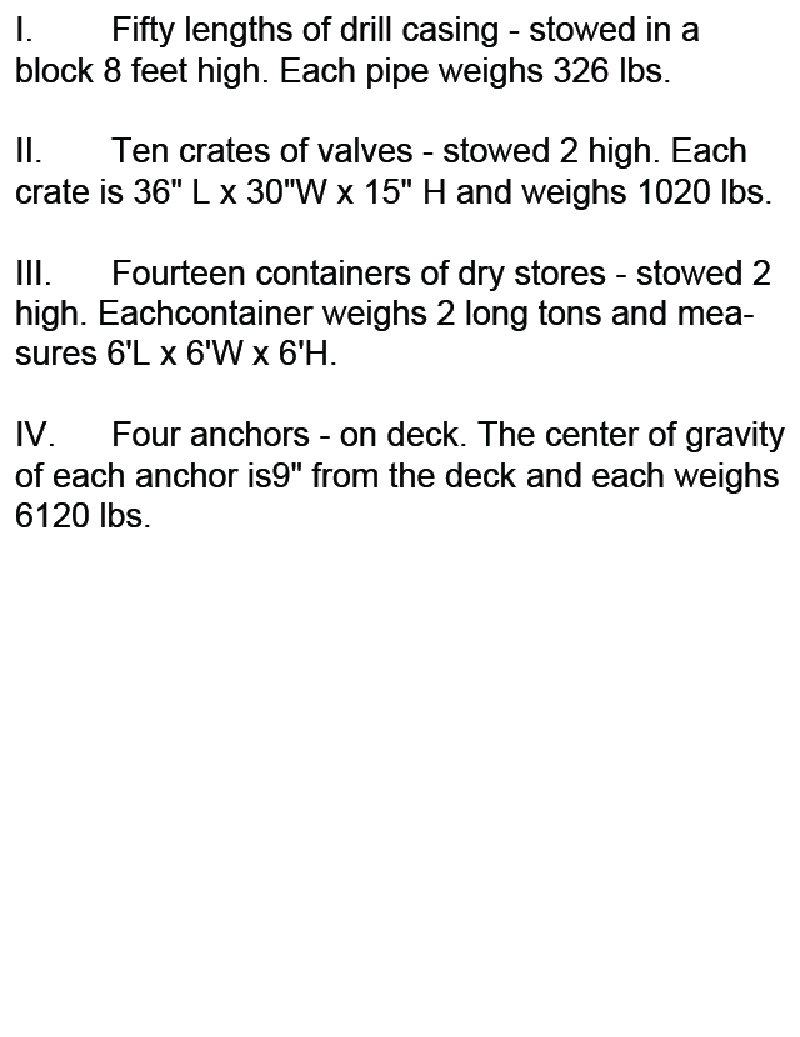

You are on a supply run to an offshore drilling rig. You are carrying the load show in table ST- 0004 below. What is the height above the main deck of the center of gravity of the cargo?

Back

Question 1 of 20

66636eec28f7522a1c51ce43

You are on a supply run to an offshore drilling rig. You are carrying the load show in table ST- 0004 below. What is the height above the main deck of the center of gravity of the cargo?

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Center of gravity of a combined load: use total moments divided by total weight • Moments about the deck: moment = weight × vertical distance of its CG above the main deck • Consistent units: convert inches to feet and long tons to pounds before calculating

💭 Think About

• For each cargo group (I–IV), where is the center of gravity located vertically, measured from the main deck? Think about stacks that are "2 high" and blocks with a given total height. • Once you know the CG height of each group, how do you combine them to find a single overall CG height for all cargo together? Which formula relates total moment, total weight, and combined CG? • How do the heavier items (like the dry stores containers and anchors) influence the final CG compared to the lighter items?

✅ Before You Answer

• For every item, convert all dimensions to feet and all weights to pounds (remember 1 long ton = 2240 lb and 9 inches = 0.75 ft). • Make sure the CG of stacked identical items is at the mid-height of the stack above the deck, not at the full stack height. • After computing each group’s moment (weight × CG height), add all moments and all weights, then compute combined CG = total moment ÷ total weight and compare that value to the answer choices.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

You are on a supply run to an offshore drilling rig. You are carrying the load show in table ST- 0004 below. What is the height above the main deck of the center of gravity of the cargo?

3.6 feet

4.2 feet

4.4 feet

4.9 feet
