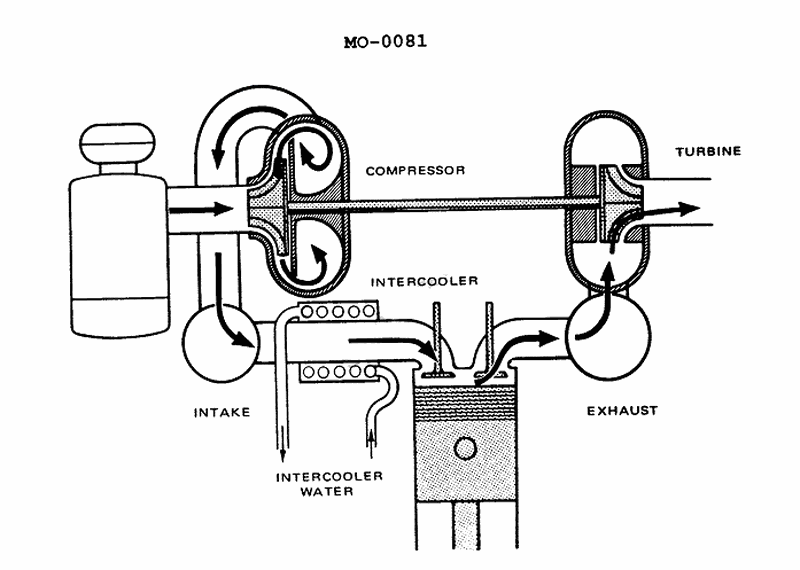

Which of the operating characteristics listed would apply to the turbocharger shown in the illustration? See illustration MO-0081.

Back

Question 1 of 20

5eccefa2bacbc34ba4d47b01

Which of the operating characteristics listed would apply to the turbocharger shown in the illustration? See illustration MO-0081.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Study the airflow path in the illustration: intake → compressor → intercooler → engine → exhaust → turbine. • Remember a turbocharger’s compressor and turbine are on the same shaft, but that shaft is not mechanically geared to the crankshaft. • Think about how engine load affects exhaust gas energy, and how that would influence turbine/compressor speed.

💭 Think About

• From the drawing, where exactly does the compression of the intake air take place? Is it in the cleaner or another component? • Is the turbo shaft speed required to be the same as engine RPM, or can it change independently as exhaust flow changes? • When the engine takes more load at the same RPM (e.g., pushing harder against the prop), what happens to fuel rate, exhaust flow, and thus turbo speed and power?"

✅ Before You Answer

• Confirm which component in the figure is actually labeled compressor and where the air cleaner is located relative to it. • Decide whether the turbo shaft speed is fixed to engine RPM or governed by exhaust gas flow and engine load. • Ask whether compressor power use would depend only on engine speed or more directly on how hard the engine is working (load/exhaust energy).

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Which of the operating characteristics listed would apply to the turbocharger shown in the illustration? See illustration MO-0081.

The turbine operating speed is dependent on engine load.

The air is compressed in the air cleaner.

The compressor operating speed matches the engine operating speed.

Compressor power consumption varies directly as engine speed varies.
