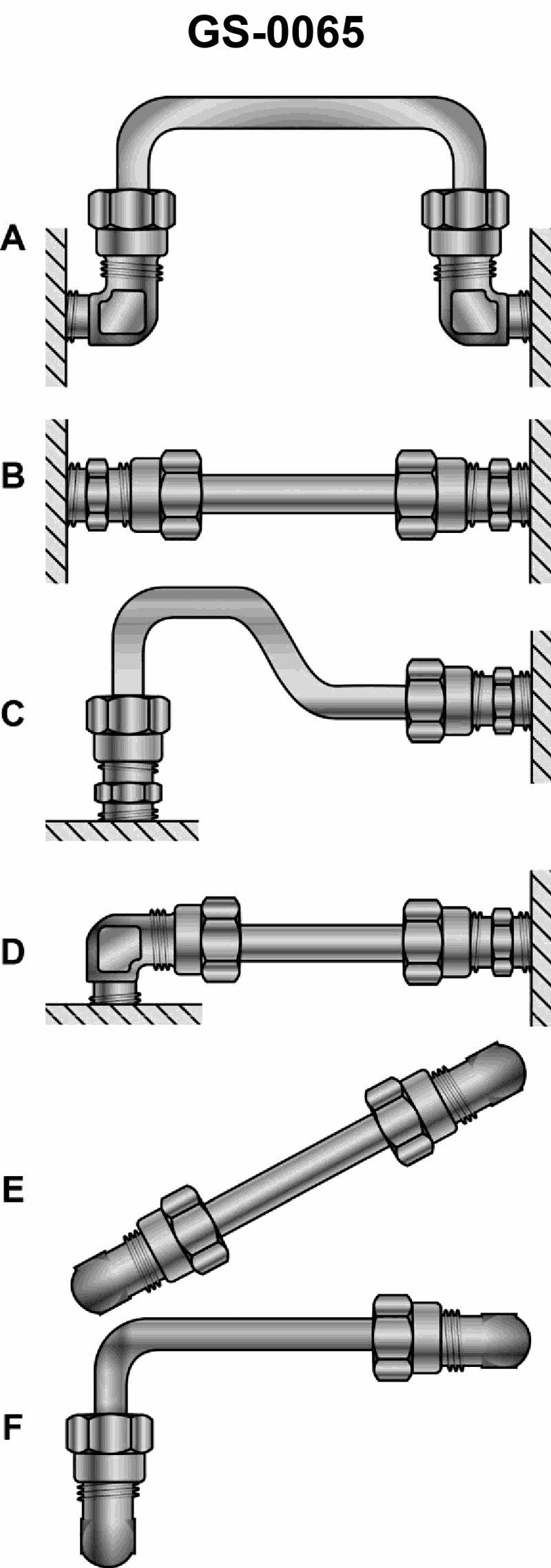

Which of the listed illustrations shows the INCORRECT method for installing hydraulic tubing? See illustration GS-0065.

Back

Question 1 of 27070

Q

Which of the listed illustrations shows the INCORRECT method for installing hydraulic tubing? See illustration GS-0065.

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Proper hydraulic tubing installation between two rigidly mounted fittings • Need for small bends or offsets to absorb vibration, thermal expansion, and slight misalignment • Difference between using straight runs versus formed bends (loops/offsets) to relieve stress

💭 Think About

• Look at which option leaves the tube with the least ability to flex if the machinery or structure moves slightly • Which arrangement would put the greatest stress on the flare/ferrule joints if there is vibration or temperature change? • Which picture shows a method that would make it hardest to align and start the threads by hand without forcing the tube?

✅ Before You Answer

• Identify which sketch has no bend or offset at all between two fixed points • Check whether both ends of the tube are connected to rigid mounting surfaces with no way for the tube to "give" a little • Ask yourself: "If one side moves slightly, which setup is most likely to cause cracking or leaking at the fittings?"
