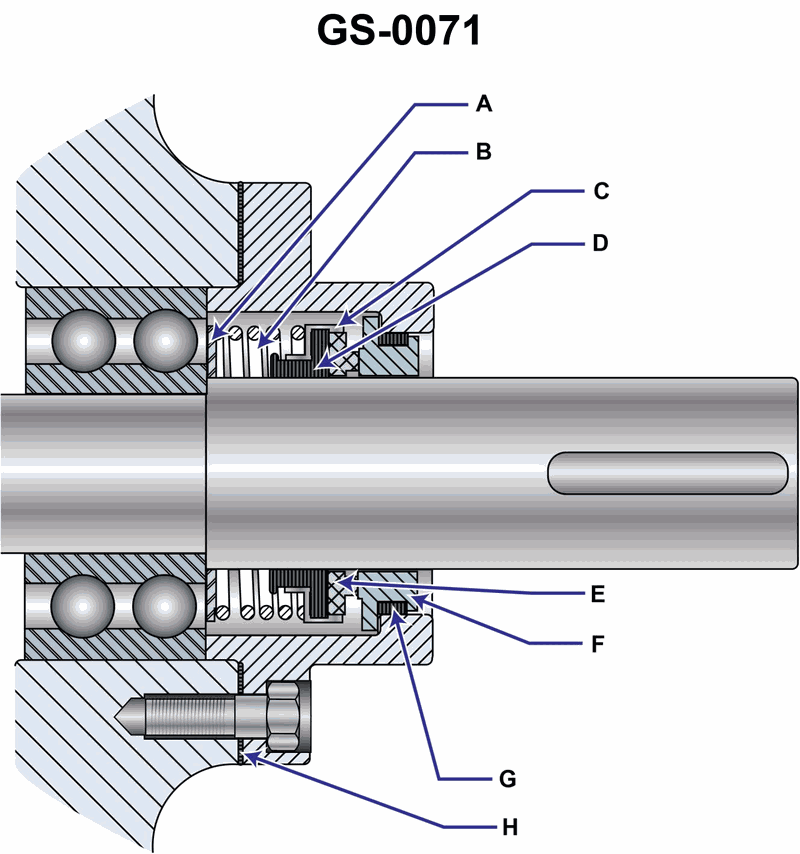

Which of the labeled parts would be considered as the 'dynamic seal ring' portion of the illustrated device? See illustration GS-0071.

Back

Question 1 of 20

5eccef9cbacbc34ba4d45944

Which of the labeled parts would be considered as the 'dynamic seal ring' portion of the illustrated device? See illustration GS-0071.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• In a mechanical shaft seal, the dynamic seal ring rotates with the shaft and presses against a stationary face to form the primary sealing surface. • The dynamic ring is usually located directly against the shaft and is pushed by springs toward the stationary ring. • Distinguish between the main sealing rings and supporting parts such as O-rings, springs, and set screws.

💭 Think About

• Look at which labeled part is clearly rotating with the shaft, not fixed in the housing. Which of A, B, E, or G appears to be mounted on or around the shaft itself? • Identify the primary sealing face: which part’s flat face is shown in contact with another ring, rather than just backing it up or holding it in place? • Among the options, which part is closest to the springs and would be pushed by them toward the stationary ring to maintain contact during operation?

✅ Before You Answer

• Verify which component has its inner surface directly on the shaft, indicating it will turn with the shaft. • Confirm that the part you choose has a flat face that mates with another ring, forming the primary sealing interface, not just a soft secondary seal like an O-ring. • Eliminate any parts that are clearly fasteners or housing components (such as set screws or the gland) that do not form the rotating sealing face.
