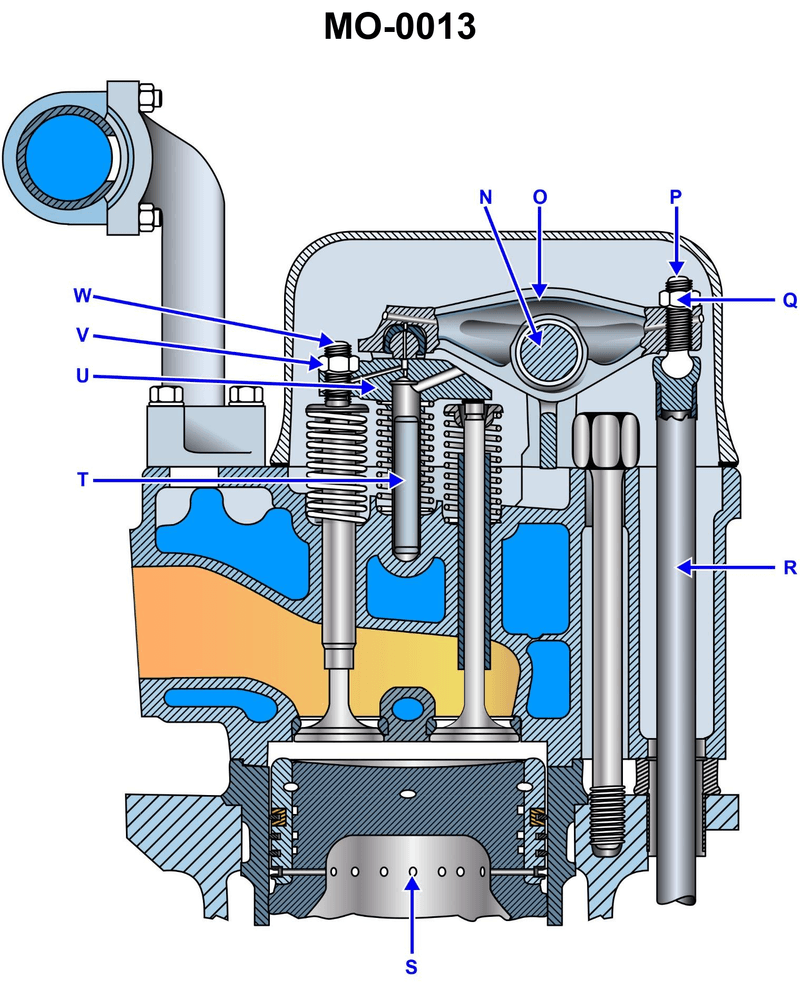

Which of the following statements is true concerning the piston rings shown in the illustration? See illustration MO-0013.

Three compression and one oil scraper ring are pictured.

The top and bottom rings pictured are bimetal rings.

The top compression ring is protected from overheating by a ring dam.

Top compression ring has an inside bevel.
