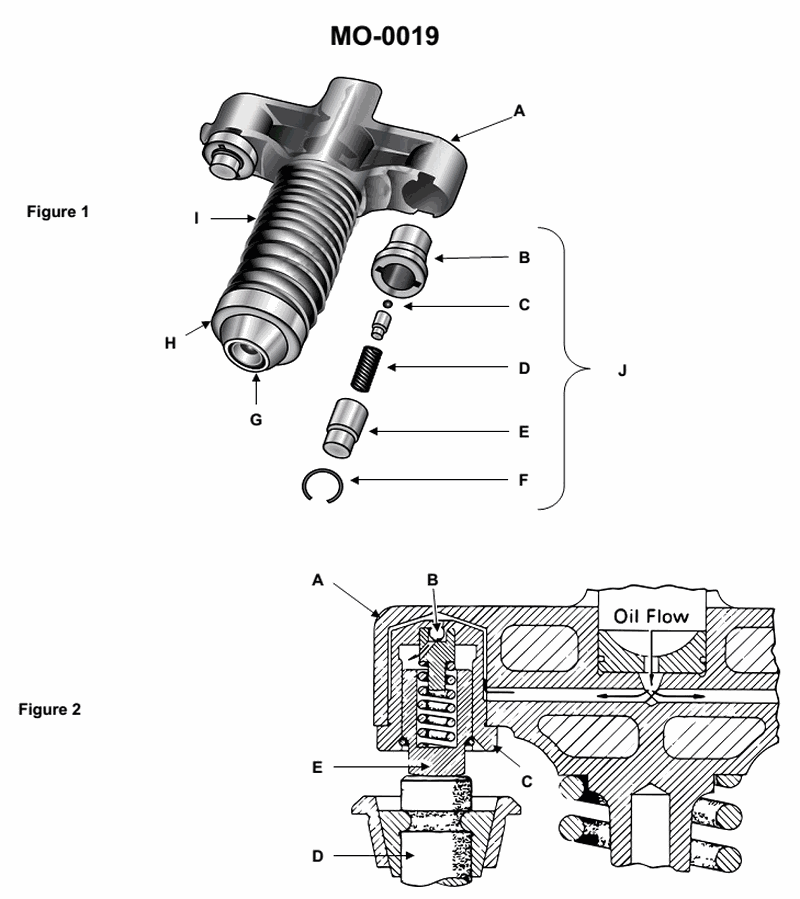

Which of the following statements identifies the purpose of the valve bridge shown in the illustration? See illustration MO-0019.
