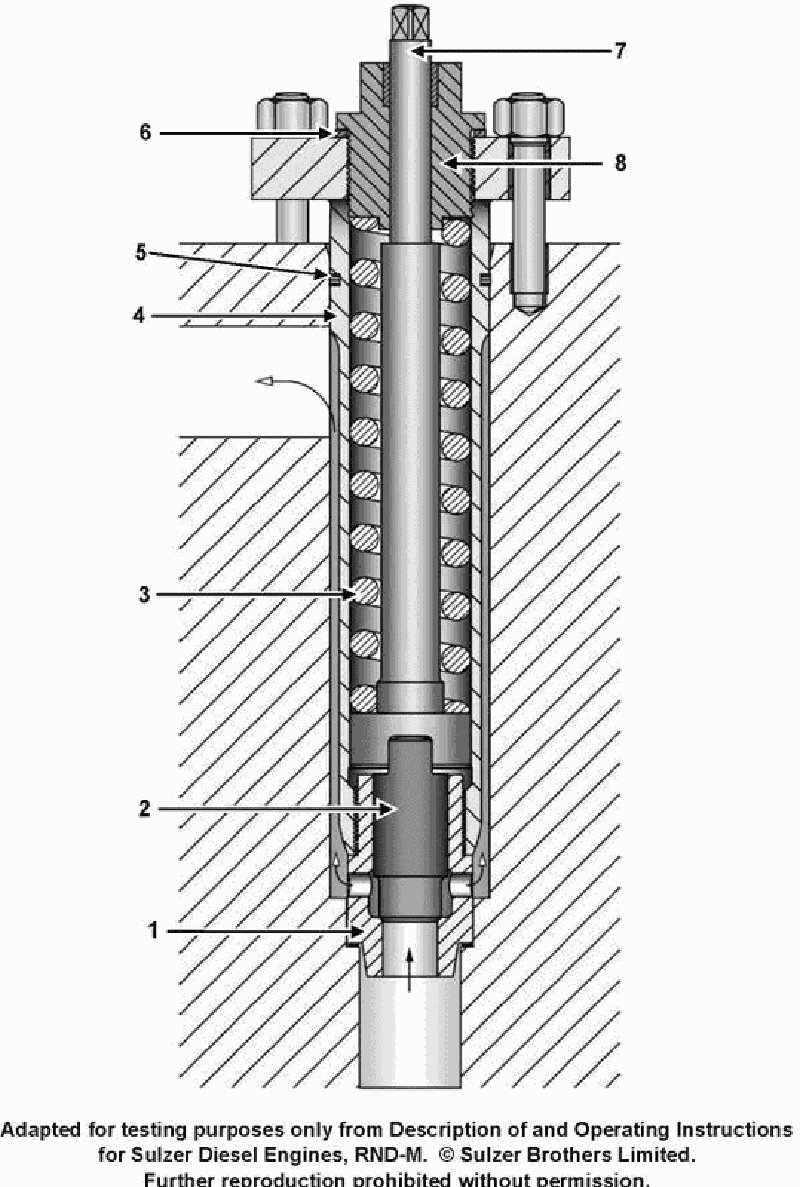

Which of the following processes is indicated by the flow arrows shown in the illustration? Illustration MO-0026

Back

Question 1 of 20

66636eef28f7522a1c51fb60

Which of the following processes is indicated by the flow arrows shown in the illustration? Illustration MO-0026

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Identify the illustrated component (note the spring-loaded spindle and nozzle at the bottom) and what system it most likely belongs to on a Sulzer diesel engine. • Consider whether the arrows show inlet flow into the cylinder or leak‑off/return flow away from the working space. • Think about what normally must be safely returned from this type of valve to a tank or drain line during normal operation.

💭 Think About

• Look at where the arrows start and end: is the flow moving toward the combustion chamber or away from it? • Does the path of flow go through a cooling jacket, a gas passage, or around a valve/spindle where small leakage would be expected? • On a fuel or air starting valve, what happens to fluid that is not used for actual injection/start—does it get vented, cooled, or returned?

✅ Before You Answer

• Verify whether the lower tip (label 1) is a nozzle into the cylinder or a water/air connection external to the cylinder. • Check if the flow path passes through areas that are clearly liquid-tight clearances around a valve spindle, which would suggest fuel rather than air or cooling water. • Confirm that the outlet at the top (label 7) appears to go to a return line fitting, not to a safety relief discharge or cooling water header.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Which of the following processes is indicated by the flow arrows shown in the illustration? Illustration MO-0026

Relief of excessively high-pressure gases from the cylinder.

Cooling water bypass flow to the heat sink.

Return flow of excess fuel oil from the injector.

Return air flow during start-up upon achieving ignition.
