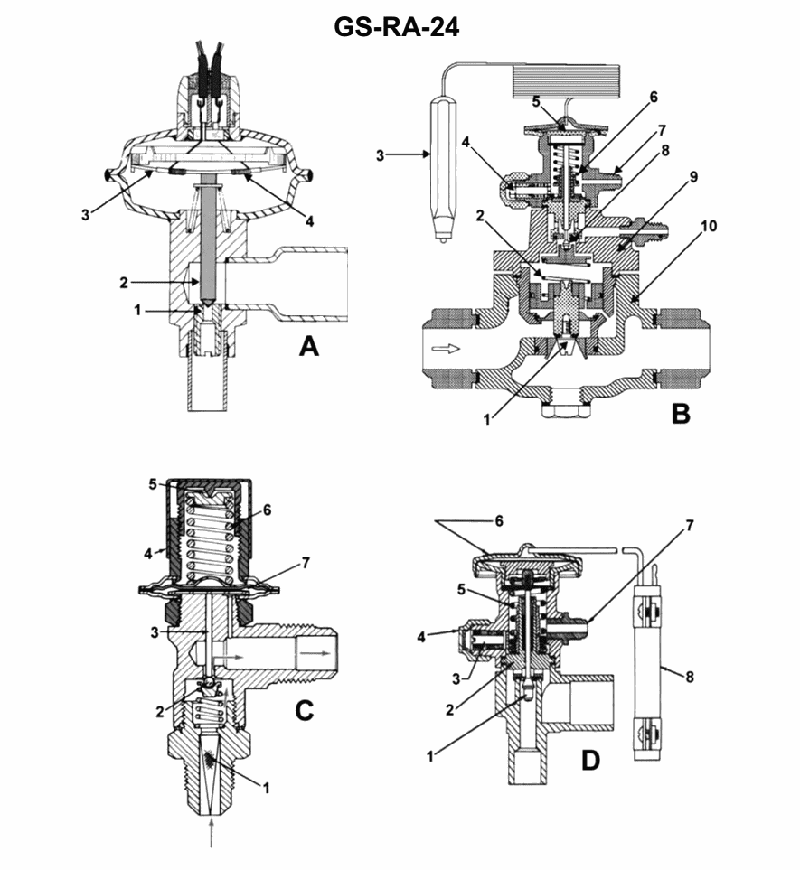

Which of the following illustrated expansion valves senses evaporator superheat by the use of thermistor probes? See illustration GS-RA-24.
