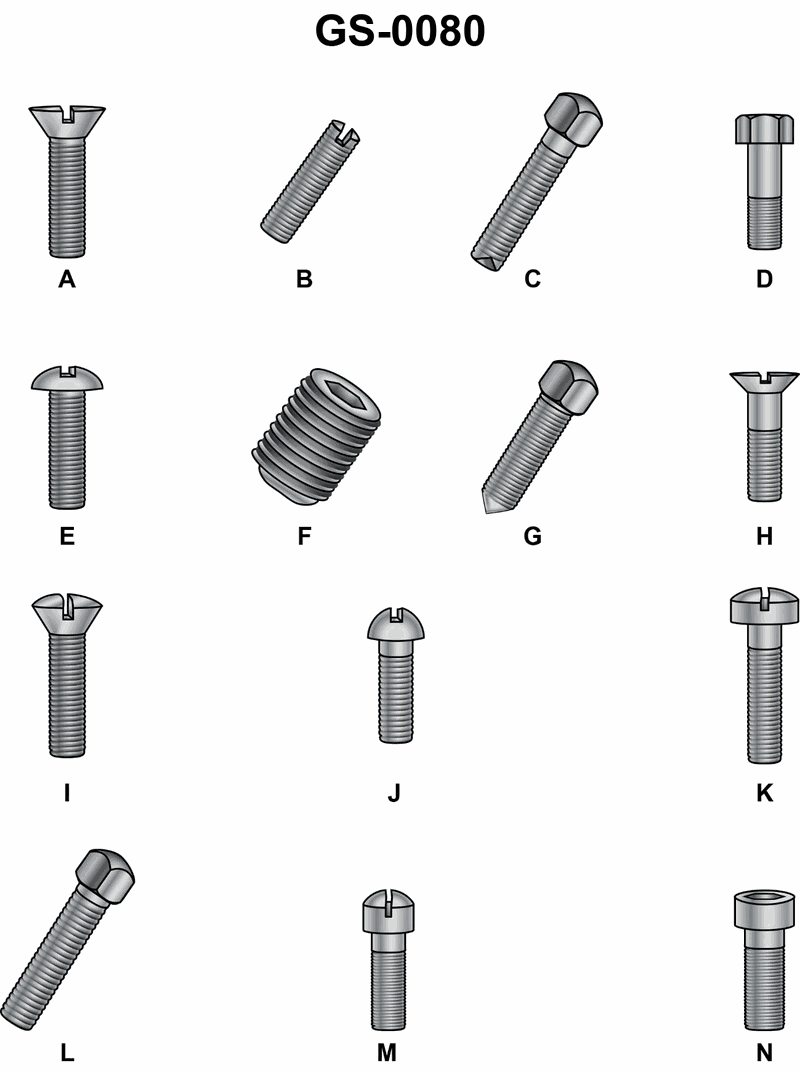

Which of the figures illustrated would be the least desirable to use as a shaft collar lock screw? See illustration GS-0080.
