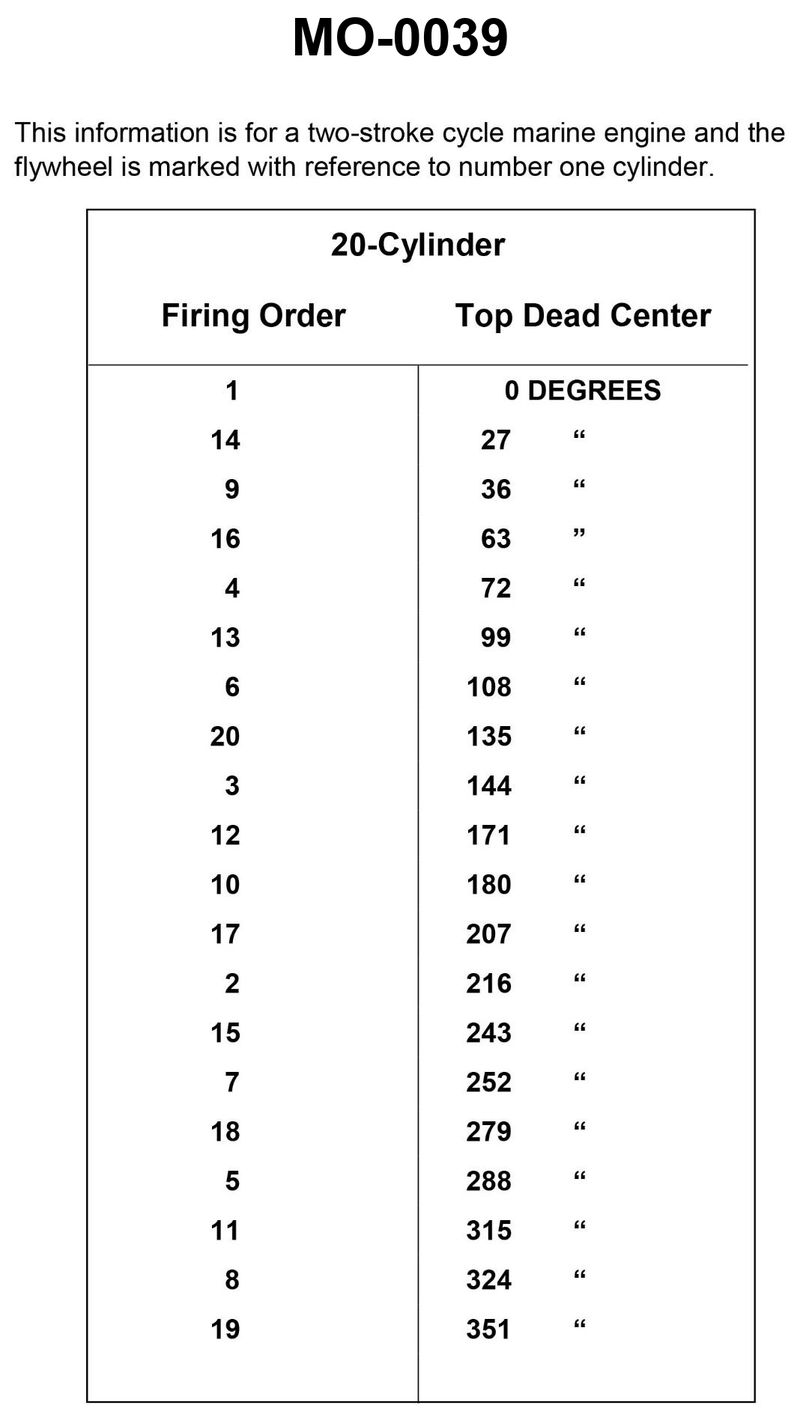

When the #1 piston, shown in the illustration, is at top dead center, the #9 piston is __________. See illustration MO-0039.

Back

Question 1 of 20

5eccefa1bacbc34ba4d47676

When the #1 piston, shown in the illustration, is at top dead center, the #9 piston is __________. See illustration MO-0039.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Use the Top Dead Center (TDC) degree table to see how far cylinder #9 is from its own TDC when cylinder #1 is at 0°. • Remember this is a two-stroke cycle engine, so there are only two piston strokes per crankshaft revolution: up for compression, down for power/exhaust-scavenge. • Think about what it means for a piston to be before or after TDC in terms of which stroke it is on.

💭 Think About

• From the table, note the degrees at which #1 and #9 reach TDC. When #1 is at 0°, is #9 already at TDC, past TDC, or still approaching it? • In a two-stroke engine, if a piston is some degrees before its own TDC, is it moving up on compression or down on exhaust/power? • Which of the answer choices describes the piston’s position or stroke when it is not yet at its own TDC but is close to it?

✅ Before You Answer

• Verify from the table that cylinder #9 reaches TDC at 36° referenced to #1 at 0°. • Confirm that at the instant #1 is at TDC (0°), #9 is 36° away from its own TDC and determine whether that is before or after TDC for #9. • Match that situation to the correct description: stroke direction (up vs down) and TDC vs BDC in the answer choices.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

When the #1 piston, shown in the illustration, is at top dead center, the #9 piston is __________. See illustration MO-0039.

on the exhaust stroke

on the compression stroke

at top dead center

at bottom dead center
