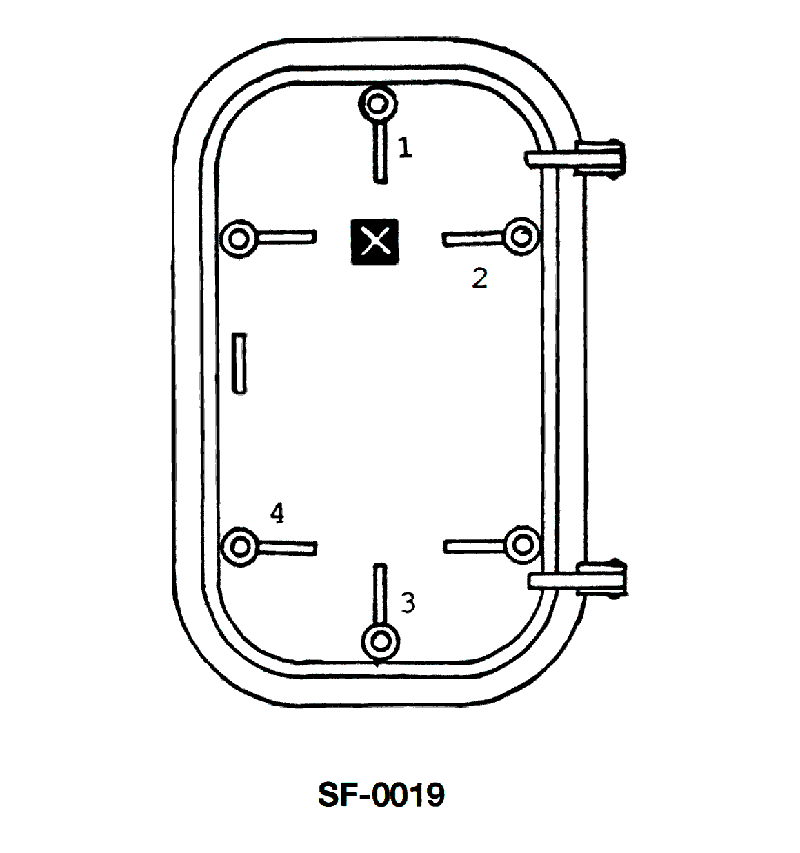

When opening a watertight door to check a compartment suspected of flooding, which of the dogs shown in the illustration should you back off FIRST? See illustration SF-0019.
• Relationship between hinge side vs. dogging side on a watertight door • How a door pivots on its hinges and which edge opens first • Why you want to crack the door at the safest, highest point when flooding is suspected
• Looking at the hinges in the illustration, which edge of the door will actually move away from the frame first as you begin to open it? • If the compartment is flooded, where will the water pressure be greatest, and where can you loosen a dog to test for flooding with the least risk of the door blowing open? • Which numbered dog is closest to the point that will start to gap first at the top when the door swings on its hinges?
• Identify clearly which side in the picture is the hinge side and which is the opening (free) side • Confirm which direction the door will swing and which corner/edge lifts off the gasket first • Make sure the dog you choose would let you crack the top safely while the remaining dogs still hold most of the door closed
