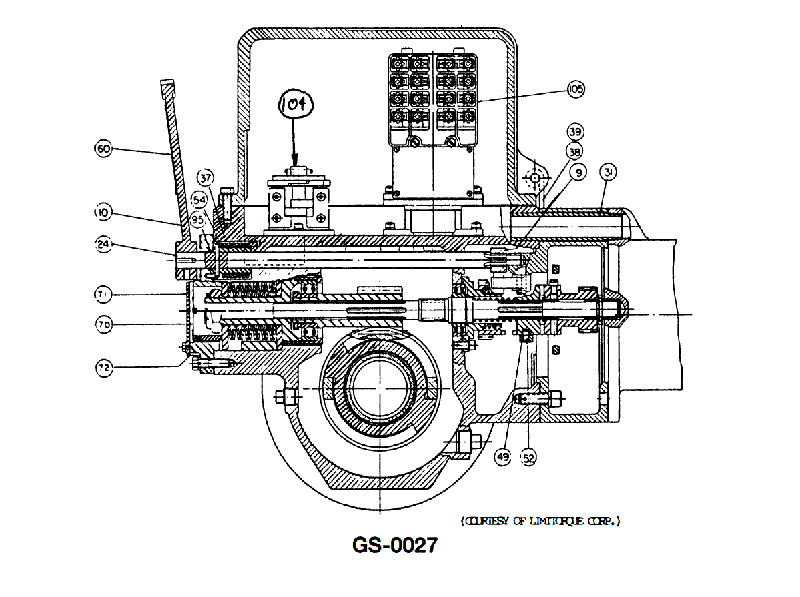

When a non-butterfly valve is closed, the motor of the device illustrated will be secured by a __________. See illustration GS-0027.
