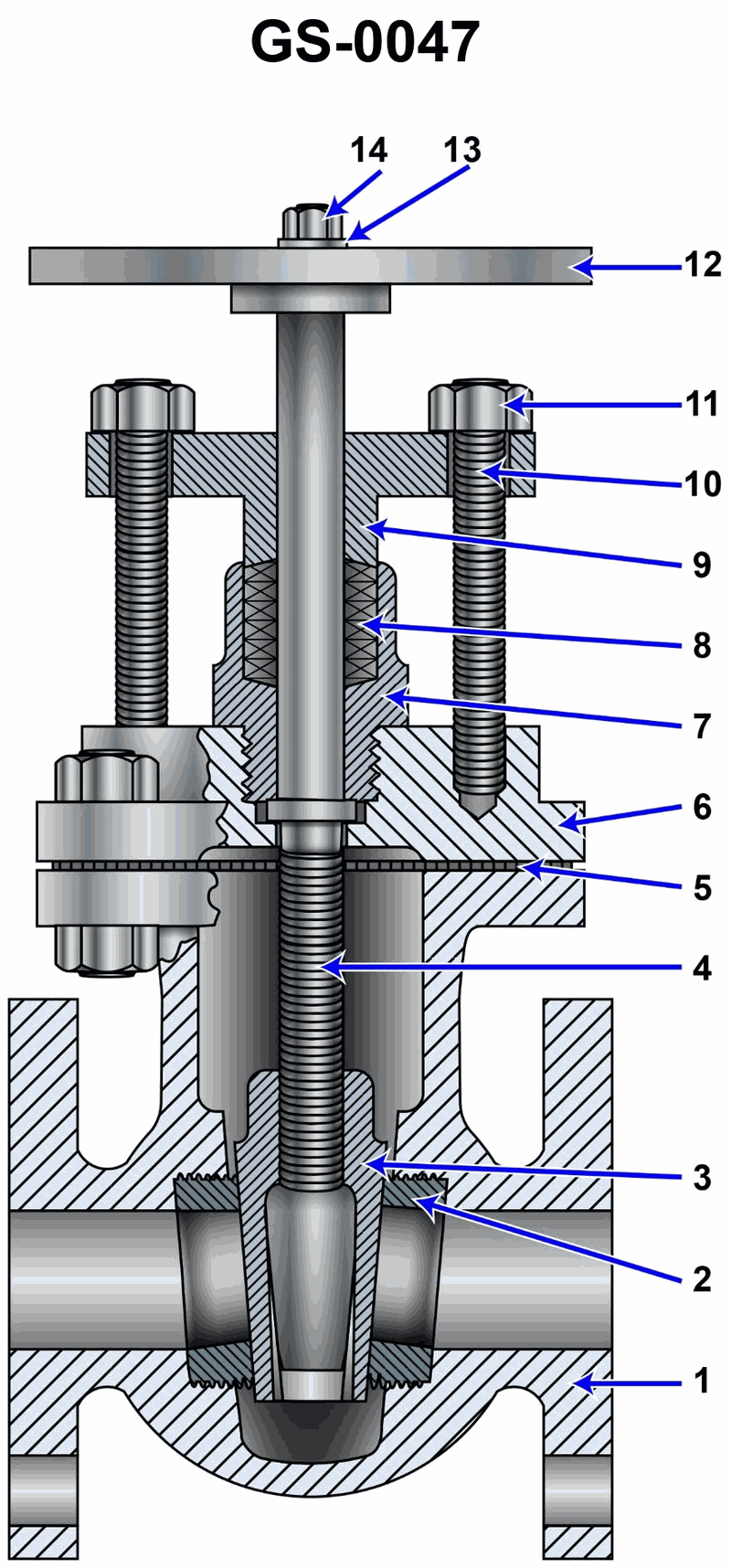

What type of valve is shown in the illustration? See illustration GS-0047.

Back

Question 1 of 20

5eccef9bbacbc34ba4d45385

What type of valve is shown in the illustration? See illustration GS-0047.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Compare the flow path shape inside a globe valve versus a gate valve • Identify whether the closure element looks like a plug/disk or a flat/rectangular gate • Look at where the threads on the stem engage and decide if the stem or the disk is moving up and down

💭 Think About

• Does the internal passage show a straight-through opening or does the flow change direction around a seated plug? • Is the moving part that seals against the seat shaped more like a plug sitting on a seat, or like a flat plate sliding across the flow? • From the drawing, does the threaded portion of the stem appear to travel through a fixed nut in the bonnet, or does it appear to be threaded directly into the disk at the bottom?

✅ Before You Answer

• Confirm if the body shape matches the typical Z-shaped flow of a globe valve or the straight bore of a gate valve • Check whether the disk/gate connection to the stem is threaded or uses a loose/ball joint connection • Verify whether the stem itself rises when operated, or if only the disk would rise while the stem remains in one axial position

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What type of valve is shown in the illustration? See illustration GS-0047.

Globe valve - rising stem

Gate valve - rising stem

Globe valve - rising disk

Gate valve - rising gate
