What type of logic gate is indicated by the...

Question 1 / 270705eccefa5bacbc34ba4d486c9

Question 1 of 270705eccefa5bacbc34ba4d486c9

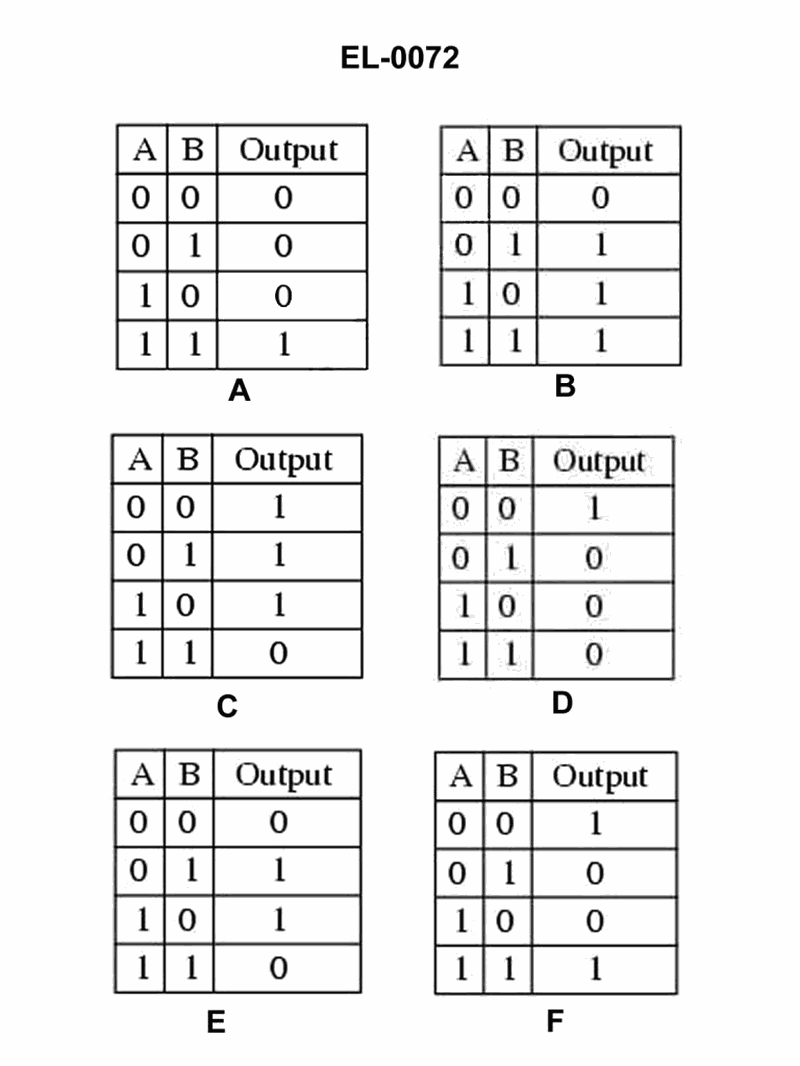

What type of logic gate is indicated by the truth table shown in figure "A" the illustration? See illustration EL-0072.

Back

Question 1 of 27070

Q

What type of logic gate is indicated by the truth table shown in figure "A" the illustration? See illustration EL-0072.

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Review how an AND gate and an OR gate behave when only one input is 1. • Compare the truth table in figure "A" with the standard tables for AND, OR, NOR, and NAND gates. • Remember that NOR and NAND are just the opposite (inverted outputs) of OR and AND.

💭 Think About

• When either A or B is 1 by itself (but not both), what does the output in table A show? • For which basic logic gate is the output 1 only under one specific input condition shown in the table? • If you inverted every output (changed 0s to 1s and 1s to 0s), which type of gate would that correspond to?

✅ Before You Answer

• Check carefully what the output is when A = 1, B = 0 and when A = 0, B = 1 in table A. • Confirm under which input condition(s) the output becomes 1 in table A. • Verify whether that behavior matches the definition of OR, AND, NOR, or NAND from your reference sheet.

Question 1 of 27070

Q

What type of logic gate is indicated by the truth table shown in figure "A" the illustration? See illustration EL-0072.

A

OR

B

AND

C

NOR

D

NAND
