🔍 Key Concepts

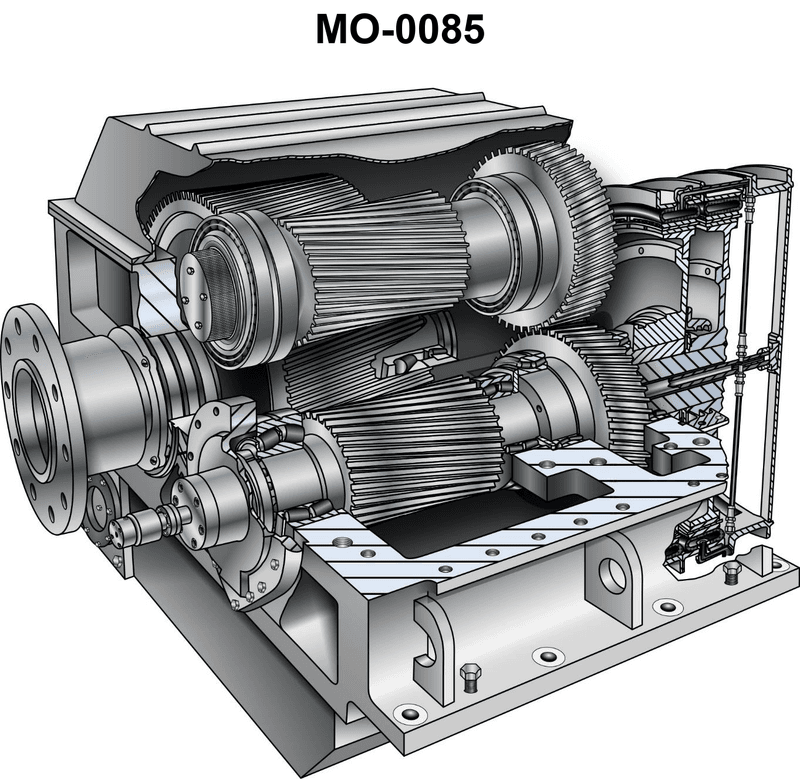

• Look closely at the clutch pack area near the input shaft and note the multiple thin plates and their housing. • Consider how medium-speed diesel engine reduction gears are usually engaged and disengaged remotely from the bridge or control station. • Compare what visible features you would expect for pneumatic, electromagnetic, and hydraulic actuation (lines, cylinders, coils, etc.).

💭 Think About

• Which type of clutch would typically use multiple friction discs running in oil inside a sealed housing on a reduction gear? • Do you see any air tanks or large solenoid coils in the illustration, or do you mainly see oil piping, control valves, and mechanical linkages? • For a propulsion clutch that must transmit high torque smoothly, which actuation method is most common on medium-speed marine reduction gears?

✅ Before You Answer

• Identify the friction disc pack and note whether it appears to be an oil-immersed (wet) clutch. • Check for control piping: does it look more like hydraulic oil piping and valves, or air lines, or electrical coils? • Think about which option is most consistent with high-torque, smooth, remotely controlled engagement on a ship’s main reduction gear.
