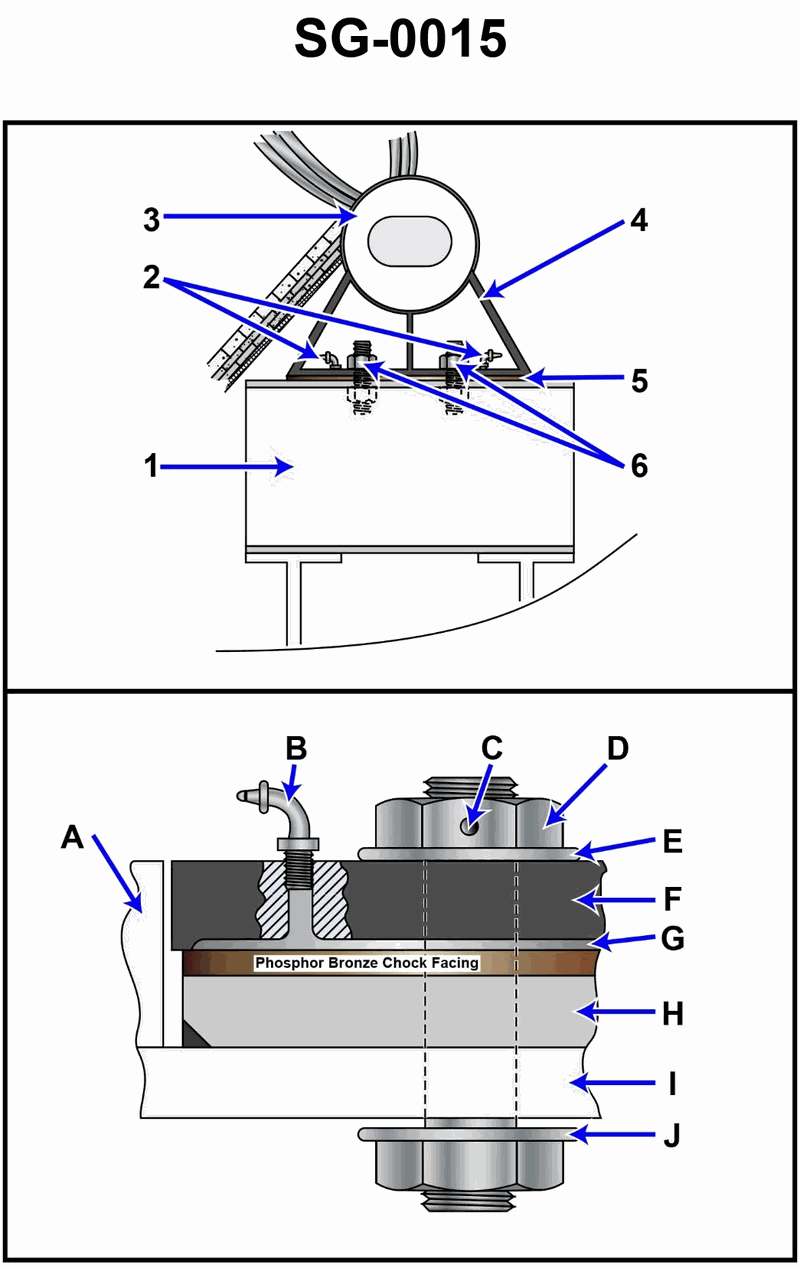

What statement is true concerning the illustrated boiler saddle, support and foot? Illustration SG- 0015

Back

Question 1 of 20

66636ef128f7522a1c521995

What statement is true concerning the illustrated boiler saddle, support and foot? Illustration SG- 0015

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Review how a boiler expands when heated and why one support must be a fixed foot and the other a sliding foot. • Look closely at the lower illustration for the labeled parts around the Phosphor Bronze Chock Facing and any grease or oil fittings – these usually indicate a sliding surface. • Recall on a typical marine water‑tube boiler which end of the water drum is held fixed and which is allowed to move (front vs rear).

💭 Think About

• From the construction shown, does this support allow longitudinal movement, or does it clamp the drum rigidly in place? What specific features in the drawing prove that? • If the drum grows longer as it heats, in which direction must it be free to move so that stresses are not transmitted into the hull or uptakes? Match that with whether this would be at the front or rear. • Compare this foot to what you would expect for a purely fixed support – what elements would be missing or different if it could not slide?

✅ Before You Answer

• Identify whether the Phosphor Bronze Chock Facing and adjacent parts form a bearing/sliding surface or a solid block with no relative motion. • Verify which end of a standard marine boiler water drum is designated the fixed end in your study materials (front or rear). • Confirm that the presence (or absence) of any lubrication fitting or wear plate matches your choice of sliding vs fixed foot before selecting an option.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What statement is true concerning the illustrated boiler saddle, support and foot? Illustration SG- 0015

The illustrated foot is the sliding foot located underneath the front of the water drum.

The illustrated foot is the fixed foot located underneath the rear of the water drum.

The illustrated foot is the sliding foot located underneath the rear of the water drum.

The illustrated foot is the fixed foot located underneath the front of the water drum.
