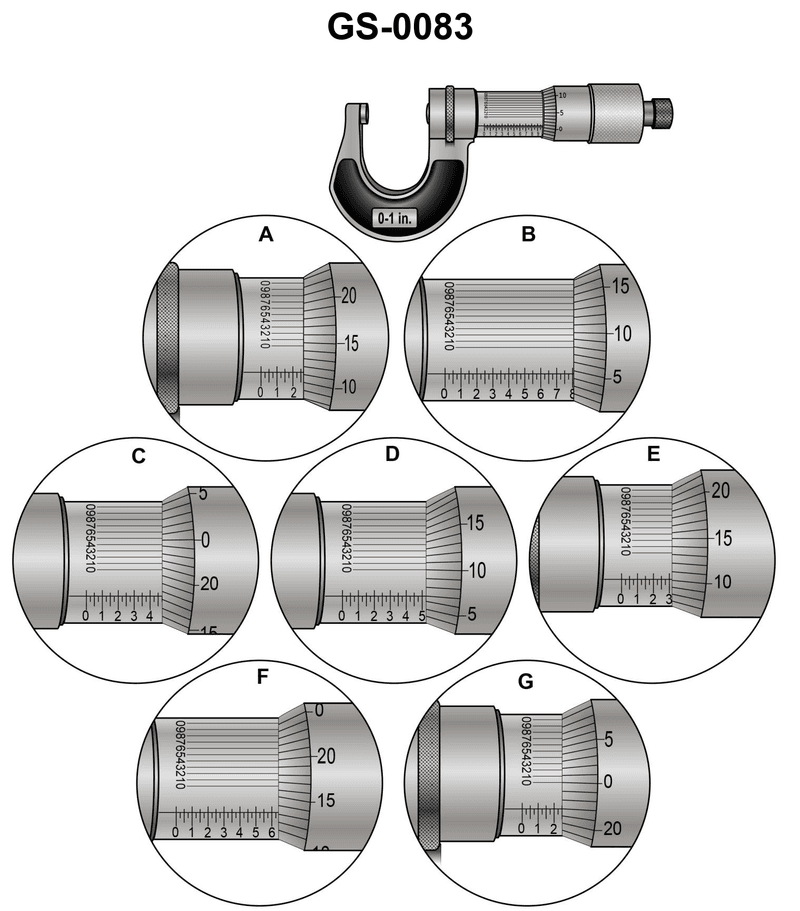

What is the reading of the vernier micrometer caliper scale shown in figure "C" in the illustration? See illustration GS-0083.
