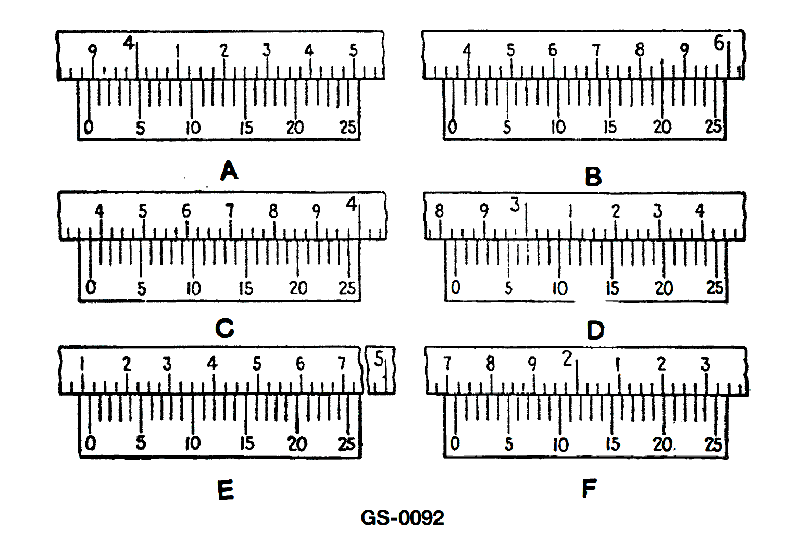

What is the reading of the vernier caliper scale shown in figure "F" in the illustration? See illustration GS-0092.

Back

Question 1 of 20

5eccef9bbacbc34ba4d45275

What is the reading of the vernier caliper scale shown in figure "F" in the illustration? See illustration GS-0092.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• How to read a vernier caliper in inches (main scale + vernier scale) • Identifying the last whole main‑scale division just to the left of the vernier zero • Finding which vernier division lines up exactly with a main‑scale line to get the thousandths of an inch

💭 Think About

• First, decide what the main scale is reading in figure F: How many full inches and how many additional 0.025" (or 1/40") divisions are there to the left of the vernier zero? • Next, scan along the vernier scale and find the single line that best lines up with a line on the main scale. How many thousandths of an inch does that aligned vernier division represent? • Combine the main‑scale reading and the vernier increment you found. Which answer choice matches that combined value most closely?

✅ Before You Answer

• Be sure you are reading figure F only, not the other figures. • Confirm what each small division on the main scale represents in inches before converting to a decimal value. • Double‑check that you picked the exactly aligned vernier line, not one that is just "almost" aligned.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What is the reading of the vernier caliper scale shown in figure "F" in the illustration? See illustration GS-0092.

1.719 inch

1.723 inch

1.812 inch

1.871 inch
