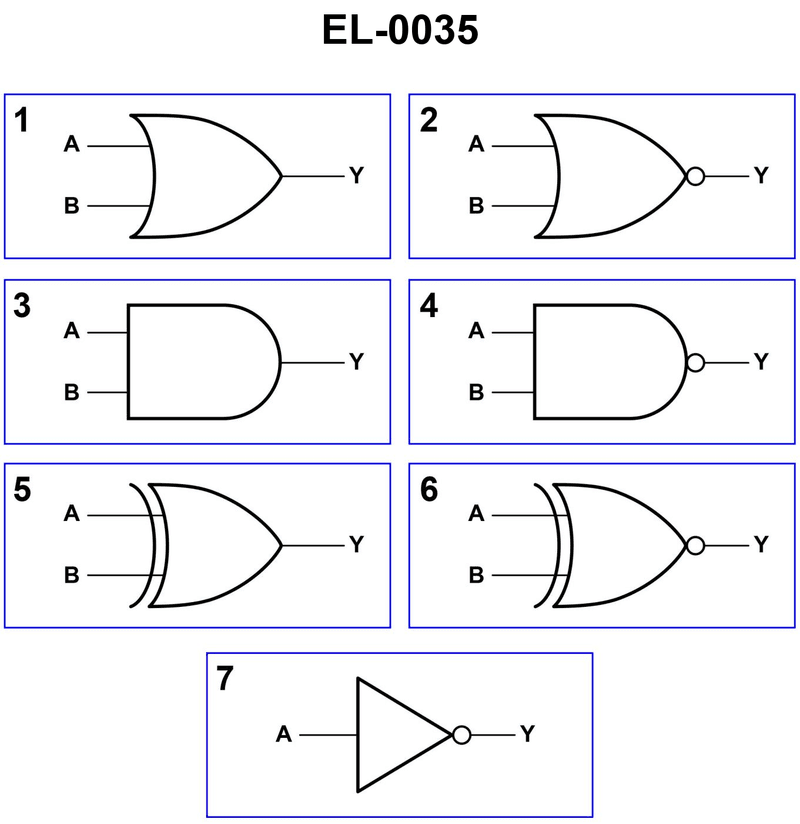

What is the name of the digital logic gate represented by figure "7" of the illustration? See illustration EL-0035.
β’ Standard symbols for basic logic gates (AND, OR, NOT) β’ Meaning of the small circle (bubble) on a gate output β’ Difference between single-input and two-input logic gates
β’ Look at how many inputs go into figure 7 and compare that to the inputs shown on the other gates in the illustration. β’ Ask yourself what the triangle shape with a small bubble on the output usually represents in digital logic diagrams. β’ Consider which of the answer choices normally require two inputs to produce an output based on a truth table.
β’ Verify which gate symbol consists of a triangle with one input and a bubble on the output. β’ Confirm that NAND, XOR, and XNOR are usually drawn with two or more inputs, not just one, in standard logic symbols. β’ Make sure the function of the symbol you recognize matches the idea of signal inversion (output is the opposite of input).
