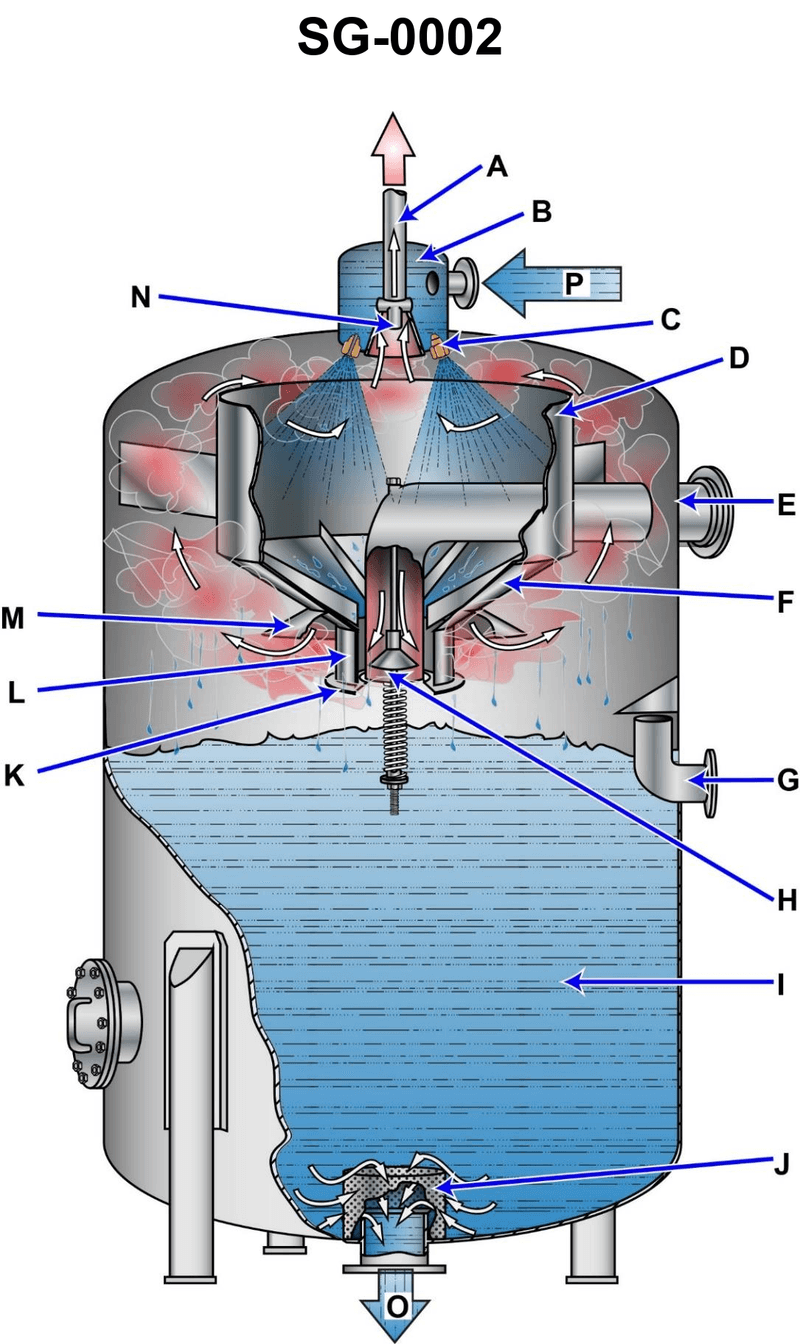

What is the heat source for the deaerating feed tank introduced at "E" in the illustration? Illustration SG-0002

Back

Question 1 of 20

66636ef128f7522a1c523620

What is the heat source for the deaerating feed tank introduced at "E" in the illustration? Illustration SG-0002

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Flow path of steam and drains into a deaerating feed tank • Difference between auxiliary exhaust steam and auxiliary steam in a marine plant • How gases are removed from feedwater by direct-contact heating

💭 Think About

• Follow the arrow marked "E" in the illustration: where does that line come from in a typical steam plant? • Which of the listed sources would normally enter the deaerating section as a continuous heating and stripping steam source, not just as intermittent drains? • Think about pressure levels: which choice is usually at the right pressure to supply the dome of the deaerator?

✅ Before You Answer

• Identify what component or header the nozzle at "E" is connected to in the drawing and in a standard steam cycle schematic. • Decide which option would provide a steady flow of steam for heating and oxygen removal, not just condensate return. • Confirm which of the four choices is commonly piped to the deaerator dome rather than to the storage section or condenser.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What is the heat source for the deaerating feed tank introduced at "E" in the illustration? Illustration SG-0002

High-pressure drains

Low-pressure drains

Auxiliary exhaust steam

Auxiliary steam
