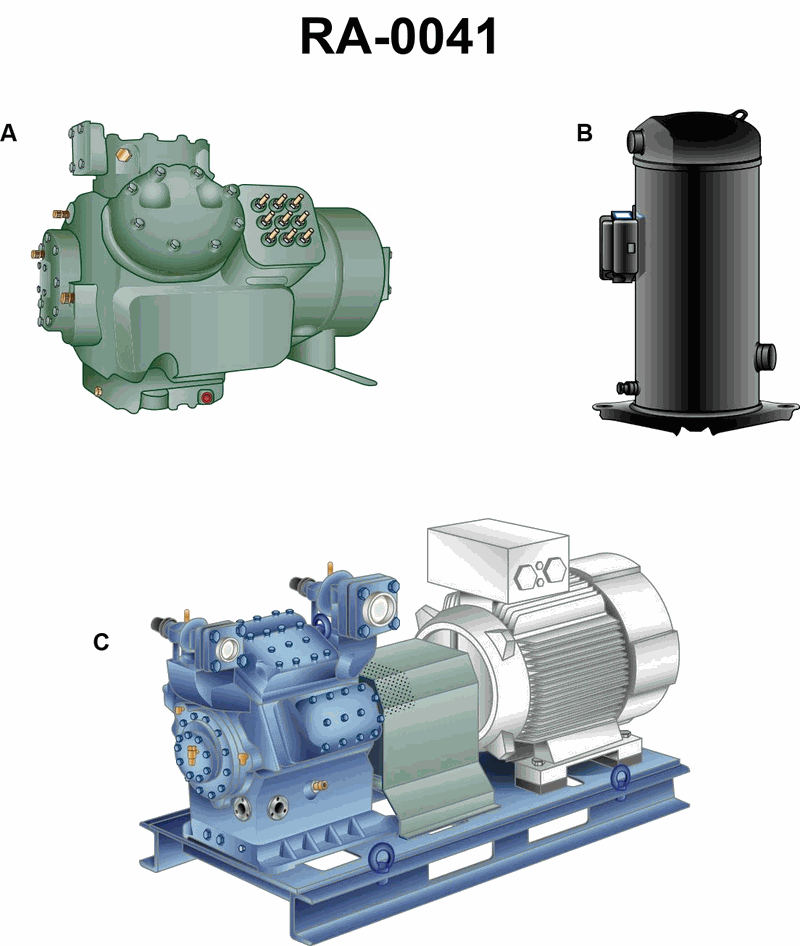

What is the drive arrangement of refrigeration compressor shown in figure "B" of the illustration? Illustration RA-0041
