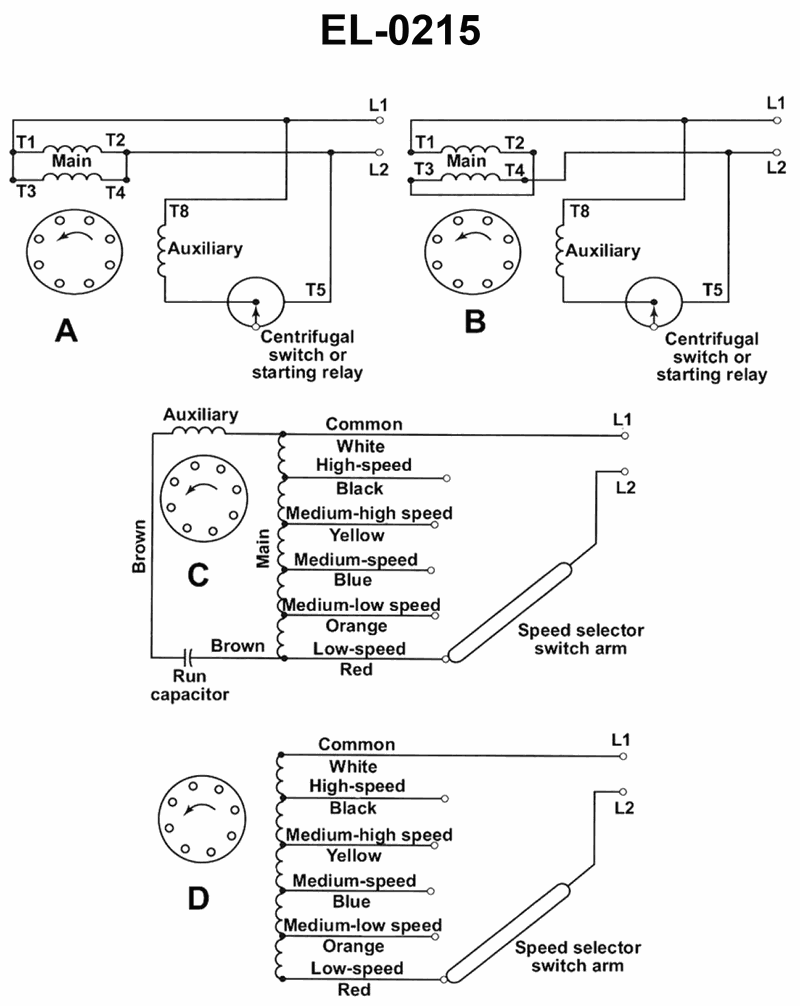

What are the operational characteristics of the shaded pole motor shown in figure "D" of the illustration? See illustration EL-0215.

Back

Question 1 of 20

5eccefa4bacbc34ba4d48254

What are the operational characteristics of the shaded pole motor shown in figure "D" of the illustration? See illustration EL-0215.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Shaded pole motor characteristics (starting winding, reversibility, and torque) • Difference between multi-speed taps and multi-voltage connections on stator windings • How a speed selector switch is drawn when it is set to one particular tap

💭 Think About

• Look at figure D and count how many separate windings you actually have, and how they are connected to L1 and L2. Does this look like a single-voltage or a dual-voltage connection? • Trace the speed selector arm in figure D. Which color lead is it touching, and what speed label is on that tap? • Ask yourself: do you see any way to reverse the rotation in this diagram (such as swapping leads, reversing an auxiliary winding, or a separate reversing switch), or is the direction fixed?

✅ Before You Answer

• Verify whether the various colored leads in figure D are labeled with different speeds or different voltages. • Confirm which tap the selector arm is actually connected to; note the associated speed label. • Check if there are any extra terminals or switches that would allow reversal of rotation; if none are shown, assume the direction is fixed.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What are the operational characteristics of the shaded pole motor shown in figure "D" of the illustration? See illustration EL-0215.

The motor is non-reversible and multi-speed, configured for low speed.

The motor is reversible and multi-speed, configured for low speed.

The motor is non-reversible and multi-voltage, configured for low volts.

The motor is reversible and multi-voltage, configured for low volts.
