š Key Concepts
ā¢ Torque in a friction clutch depends mainly on normal force, friction coefficient, and effective radius of the friction surfaces
ā¢ In an air clutch, normal force on the friction plates is created by air pressure acting on a piston/diaphragm, assisted or positioned by springs and mechanical adjustments

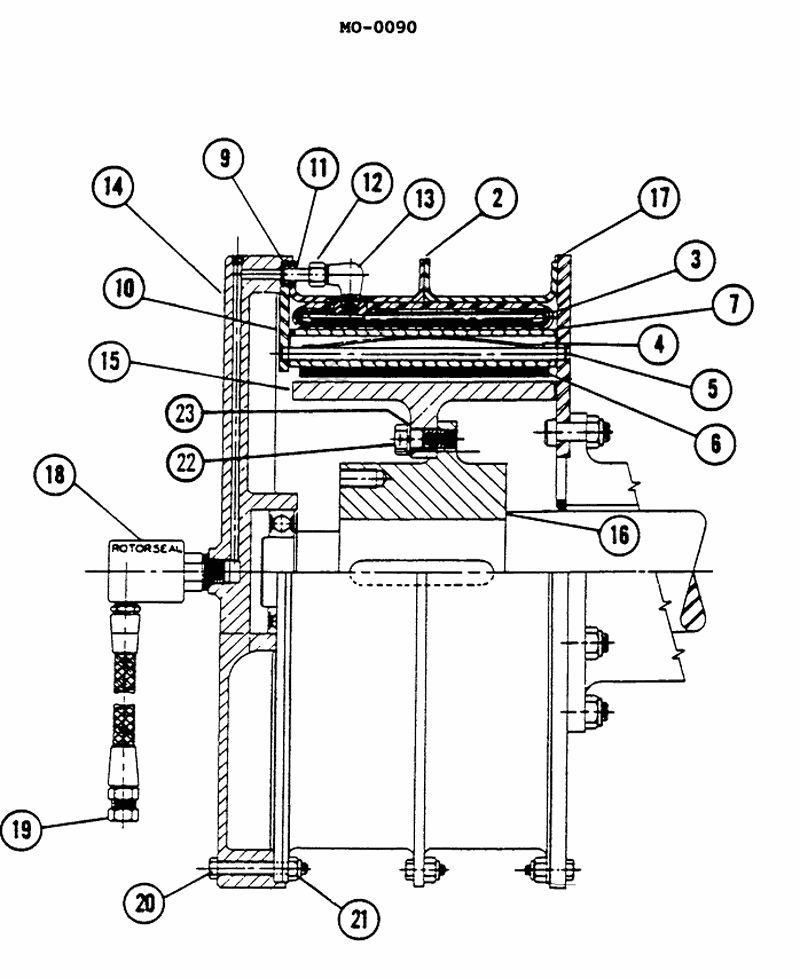

ā¢ Study the roles of friction plate #6, spring #4, and nut #22 in the illustration MO-0090 to see which actually changes the applied force versus just position or clearance
š Think About
ā¢ Which change would directly increase the squeezing force between the driving and driven plates over the full engaged area, instead of merely changing clearance or alignment?
ā¢ If you made the friction plate thinner, would that increase contact force, decrease it, or mainly affect how far parts move before contact?
ā¢ Looking at the drawing, which component controls the pressure medium that actually pushes the piston, and which components only set initial position or return force when pressure is removed?
ā
Before You Answer
ā¢ Verify which part in the illustration provides the applied engaging force (air vs. spring vs. mechanical stop)
ā¢ Confirm which option changes the magnitude of normal force on the friction surfaces, not just their spacing or preload
ā¢ Eliminate any options that would clearly reduce contact area or weaken the engaging force, since these would lower torque capacity
