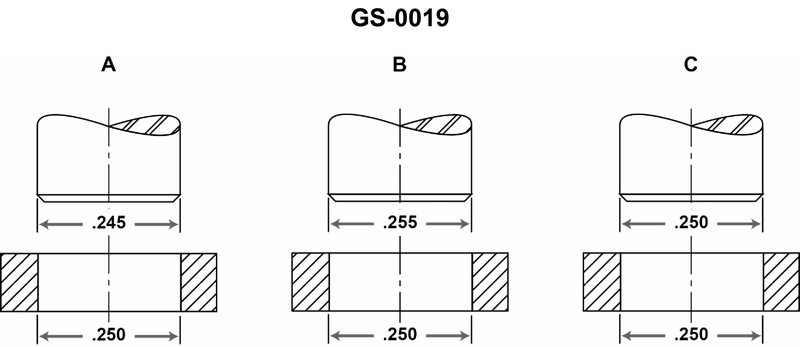

To make the pieces shown as "A" in the illustration a locational interference fit, what will be necessary? See illustration GS-0019.

Back

Question 1 of 20

5eccef9abacbc34ba4d45083

To make the pieces shown as "A" in the illustration a locational interference fit, what will be necessary? See illustration GS-0019.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Clearance fit vs. interference fit – which one has the shaft smaller than the hole, and which one has the shaft equal to or larger than the hole? • Definition of a locational interference fit – typically a small predictable interference, not a heavy press fit and not a loose sliding fit. • Compare the actual dimensions in view A (shaft vs. hole) to the dimensions shown in the other views and to the answer choices.

💭 Think About

• Look carefully at view A: which number belongs to the shaft and which to the hole? Does that give you clearance or interference, and by how much? • For a locational interference fit, do you want a very large interference, a very loose clearance, or a slight controlled overlap between shaft and hole sizes? • Which option changes the dimensions so that the maximum shaft size is just slightly larger than the hole size, giving a light but definite interference?

✅ Before You Answer

• Identify clearly: current clearance or interference in view A (numeric value). • Determine what range of shaft diameters each answer choice would produce in relation to the 0.250‑inch hole. • Verify which choice results in small, controlled interference (not 0.005 in clearance and not 0.005 in heavy interference).

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

To make the pieces shown as "A" in the illustration a locational interference fit, what will be necessary? See illustration GS-0019.

the piece with the hole must be heated until the inside diameter of the hole is .245 inches +/-.001

do nothing, this is a close sliding fit but there is no way to make it a locational interference fit and a close sliding fit is an acceptable alternative

an interference is not possible unless you turn down a new shaft with a diameter of .250 inches +.001/-.000

hone the shaft until the roughness value is 50 micro inches (.005 inch clearance)
