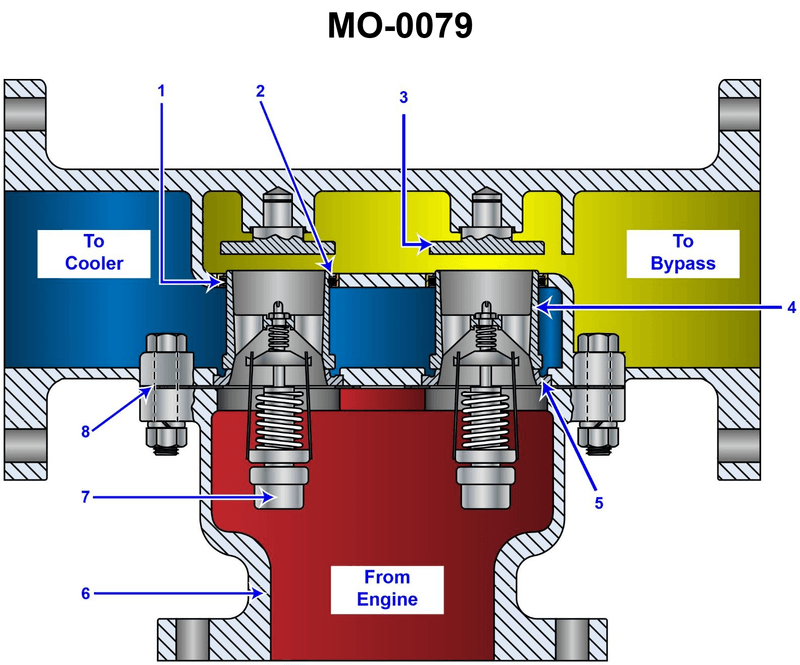

The thermostatic valve in the illustration is used for controlling the coolant temperature in a main propulsion diesel engine. Which of the following can be used to verify proper valve operation with the valve disassembled? Illustration MO-0079

Back

Question 1 of 20

66636eef28f7522a1c520390

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• How the thermostatic element in the center of the valve uses heat to move the valve stem and overcome the spring • The function of the power pellet/wax charge as a temperature‑sensing and expanding medium, not something normally disassembled • Why mechanics use a controlled water‑bath test to check opening temperature and valve travel on thermostatic valves/engine thermostats

💭 Think About

• Which option actually lets you see whether the valve stem moves at the correct temperatures, similar to how it works when installed in the engine? • Which choices would permanently damage or alter the thermostatic element so you could NOT reuse it afterward? • Think about standard shop practice for testing engine thermostats: what simple equipment do you need, and what are you looking for as temperature changes?

✅ Before You Answer

• Make sure the method lets you observe valve stem movement versus temperature over the operating range. • Confirm the test is non-destructive, so the valve can be reinstalled if it passes. • Eliminate any option that focuses only on the spring or on analyzing/remove the internal charge, instead of checking actual temperature‑controlled motion.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Check spring compression values against data given in manufacturer's handbook.

Chemically analyze contents of power pellet.

Remove and examine the contents of the power pellet.

Place the thermostatic element in a container of water at various operating temperatures and note the movement of the valve stem.
