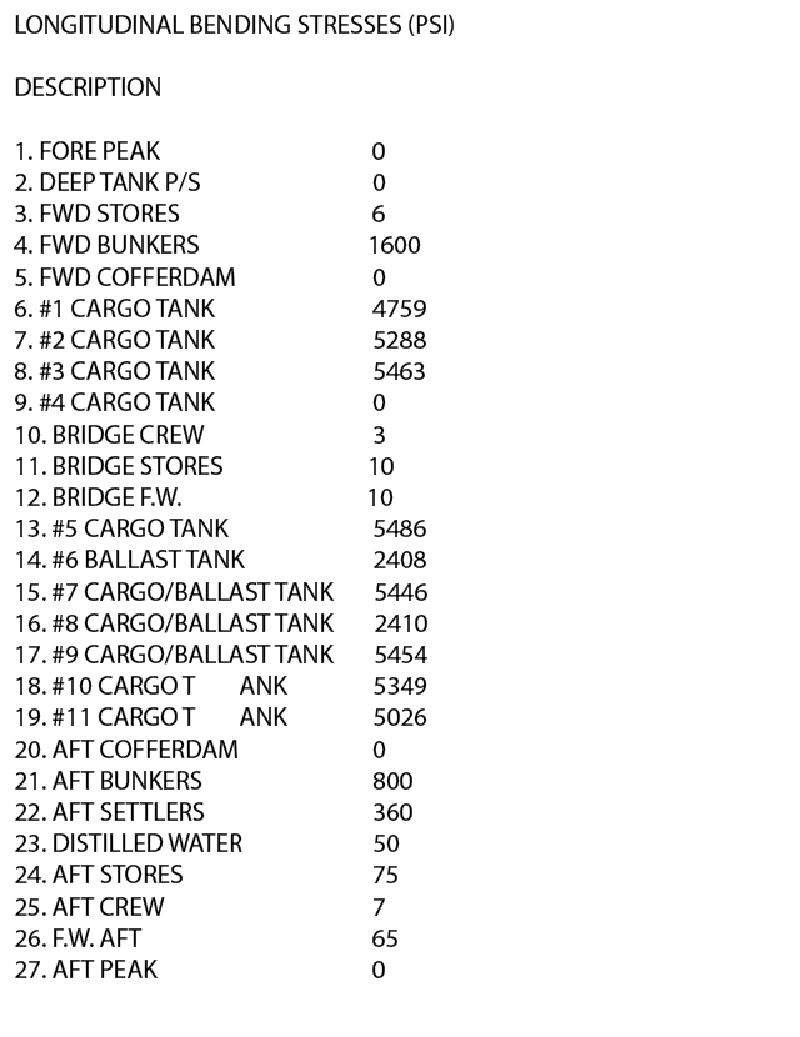

The tankship Northland is loaded as shown in table BL-0026 below. Use the salmon-colored pages in the Stability Data Reference Book to determine the sagging numeral.
