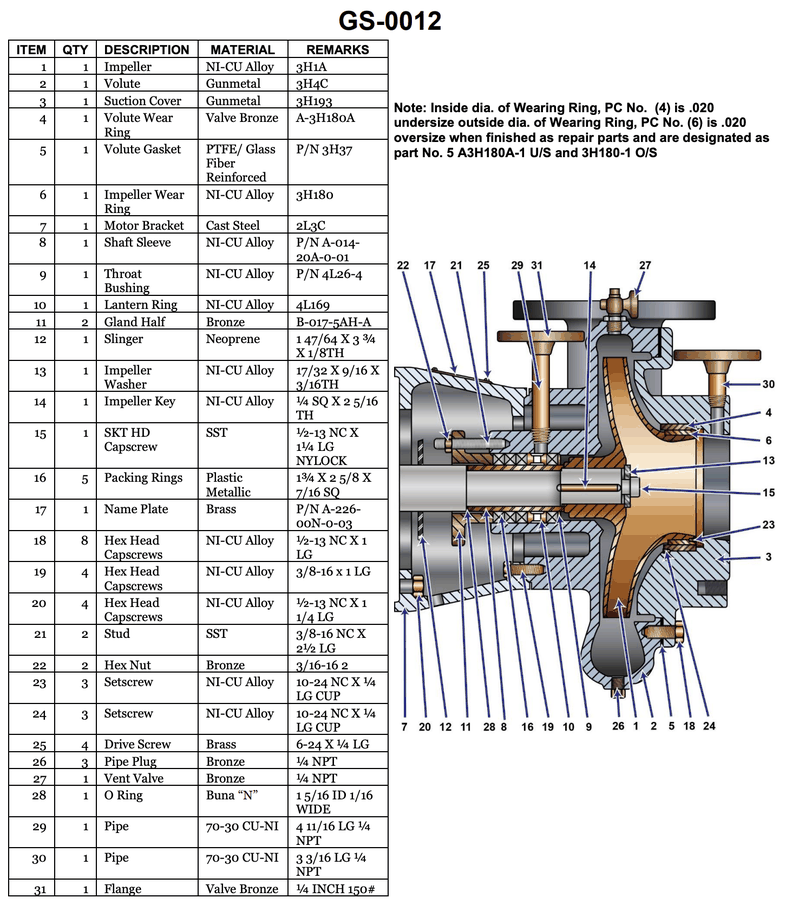

The suction nozzle classification of the pump shown in the illustration can best be described as __________. See illustration GS-0012.

Back

Question 1 of 20

5eccef9bbacbc34ba4d45473

The suction nozzle classification of the pump shown in the illustration can best be described as __________. See illustration GS-0012.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Look carefully at how liquid enters the impeller eye from the connected pipe/flange on the casing. • Review the common centrifugal pump suction arrangements: end suction (axial), side/bottom/top suction (radial into the casing). • Note the relationship between the pump shaft centerline and the direction of flow at the suction nozzle.

💭 Think About

• From which direction does the fluid approach the impeller: straight along the shaft axis, or from a radial opening in the casing? • Is the suction flange located at the very end of the pump casing or on the side, top, or bottom of the volute body? • If you follow the centerline of the suction pipe in the drawing, does it line up with the shaft or intersect it from the side?

✅ Before You Answer

• Verify whether the suction pipe/flange is in line with the shaft axis or perpendicular to it. • Confirm that the suction opening leads directly into the impeller eye without turning inside the casing. • Make sure you are classifying the suction connection (where fluid enters) and not the discharge connection.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The suction nozzle classification of the pump shown in the illustration can best be described as __________. See illustration GS-0012.

end suction

side suction

bottom suction

top suction
