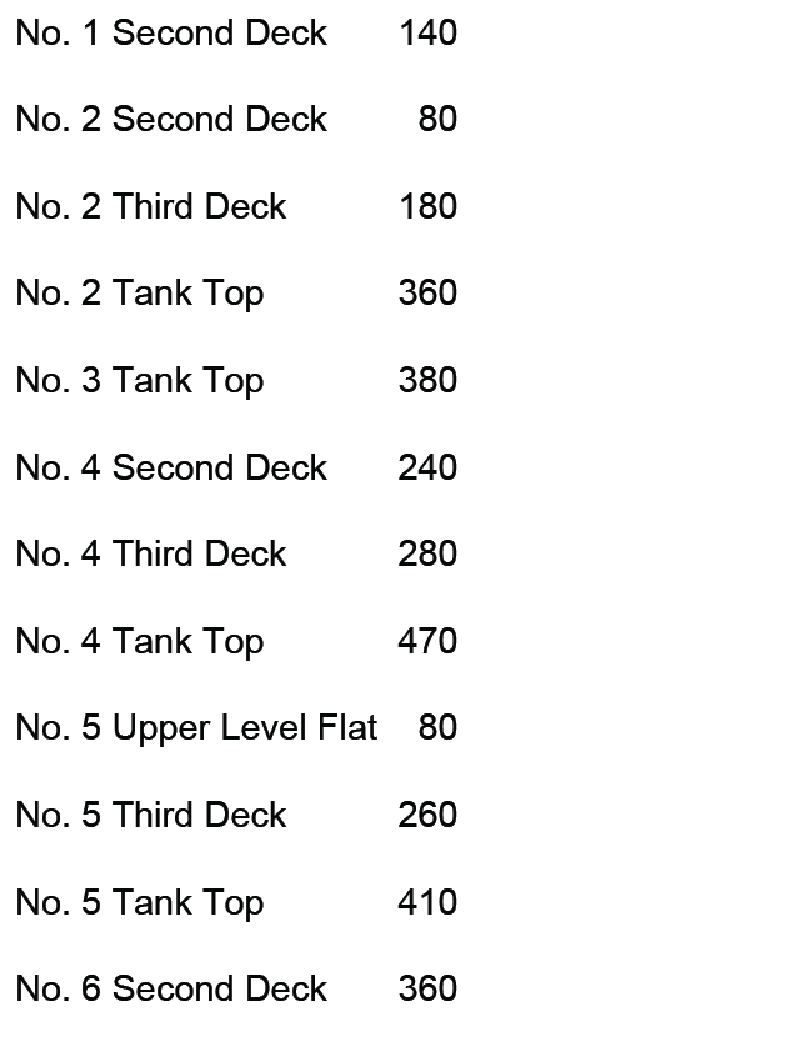

The SS AMERICAN MARINER is ready to load the cargo listed in table ST-0008 below. There is already 4184 tons of cargo on board with a KG of 27.8 feet. Use the white pages of the Stability Data Reference Book to determine the final KG of all the cargo after loading is completed.
• Use the combined center of gravity (KG) formula to mix existing cargo with new cargo • From the white pages of the Stability Data Reference Book, each stowage location (e.g., No. 2 Tank Top, No. 4 Second Deck) has its own VCG or vertical moment per ton • Adding weight high raises KG; adding weight low lowers KG—estimate whether the final KG should be higher or lower than 27.8 ft
• First, add up the total tons of new cargo from all the listed locations, then combine that with the 4184 tons already on board—what is the new total cargo weight? • For each stowage location, what is the VCG or moment per ton from the white pages, and what happens when you multiply it by the tons loaded there? • Before you divide to get the new KG, think: are most of these tons going on tank tops/low decks or on second/third decks—so should the combined KG move up or down from 27.8 ft?
• Be sure you use the existing cargo moment: (4184 tons × 27.8 ft) before adding moments from new cargo • Confirm you have included every line of the loading table in your total weight and total moment sums • After you compute the final KG, check if its trend (higher or lower than 27.8 ft) matches where the majority of the new weight was stowed
