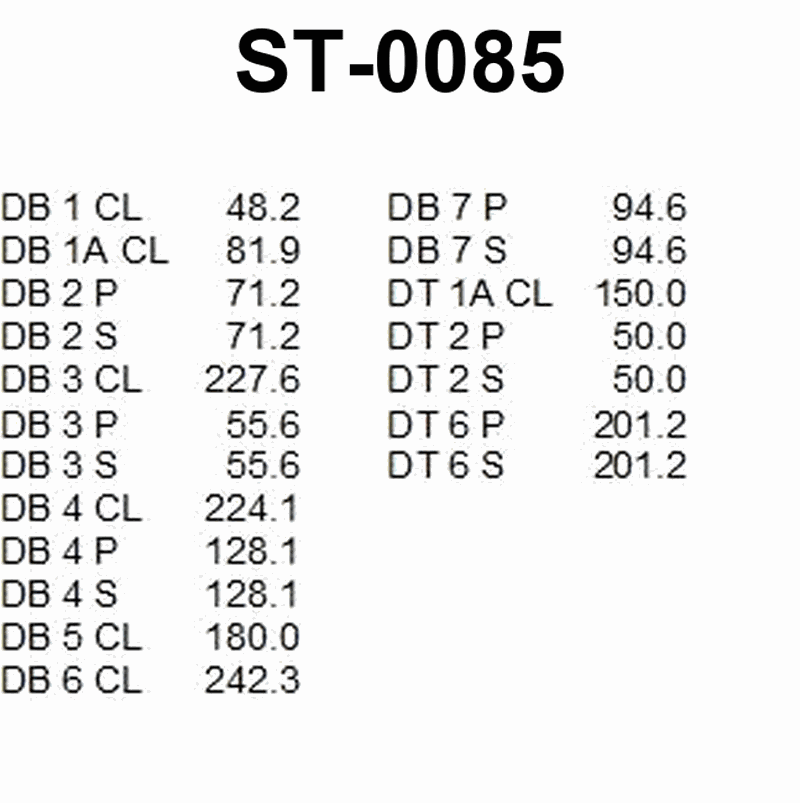

The SS AMERICAN MARINER is ready to bunker with drafts of FWD 14'-06", AFT 17'-00". After all bunkers are on board, soundings indicate the tonnages shown in table ST-0085 below. Use the white pages of The Stability Data Reference Book to determine the free surface correction.
• Use the Free Surface Correction (FSC) formula: FSC = (sum of free surface moments) / displacement • From the white pages for SS AMERICAN MARINER, find the free surface moment for each tank at the indicated tonnage (slack tanks only) • Be careful to use the correct displacement from the hydrostatic data based on the given drafts
• Which of the tanks listed in ST-0085 are clearly full, clearly empty, or slack when you compare their tonnages to the tank-capacity tables in the white pages? • Once you have identified the slack tanks, how do you combine their individual free surface moments into a single total free surface moment for the ship? • After you find the total free surface moment, what value from the hydrostatic tables (based on the drafts given) must you divide by to convert that into a GM correction in feet?
• Verify you are only using tanks that are slack (not pressed up and not empty) when you sum free surface moments • Confirm you use free surface moment (FSM), not weight or capacity, in the FSC formula • Double‑check that the displacement you divide by matches the draft condition specified in the problem and is taken from the correct American Mariner hydrostatic table
