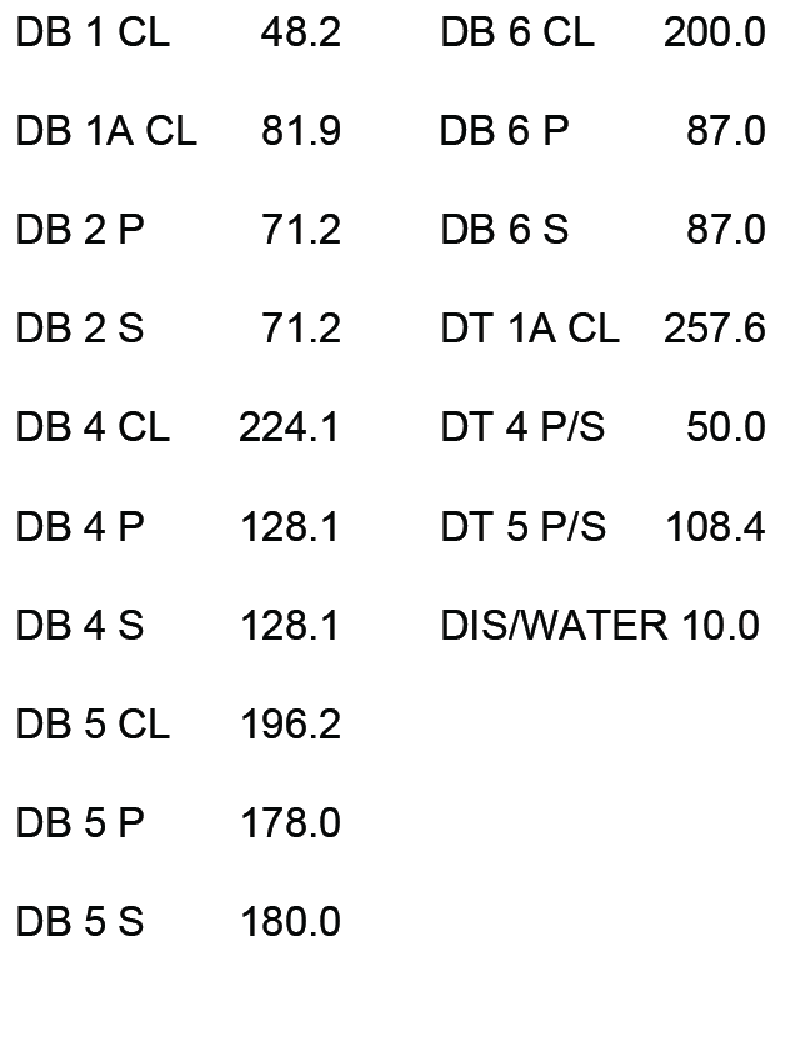

The SS AMERICAN MARINER has the liquid load shown in table ST-0116 below. Use the white pages of The Stability Data Reference Book to determine the LCG-FP of the liquid load.

Back

Question 1 of 20

66636eec28f7522a1c51cbb8

The SS AMERICAN MARINER has the liquid load shown in table ST-0116 below. Use the white pages of The Stability Data Reference Book to determine the LCG-FP of the liquid load.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Use the white pages tank tables for SS AMERICAN MARINER to get the LCG-FP (in feet) for each listed tank at the exact load in tons shown in the question. • Remember that total LCG of a group of weights is found from the sum of longitudinal moments divided by the sum of the weights. • Port and starboard tanks with the same name (e.g., DB 4 P and DB 4 S) have the same LCG-FP, so their weights can be combined before finding the moment.

💭 Think About

• For each tank in the list, what two numbers do you need from the Stability Data Reference Book white pages so you can calculate that tank’s longitudinal moment about the FP? • Once you have the total weight of all liquids and the sum of their longitudinal moments, how do you convert that into a single LCG-FP for the entire liquid load? • How can combining symmetrical port and starboard tanks help simplify your arithmetic while keeping their common LCG-FP unchanged?

✅ Before You Answer

• For every tank listed (including DIS/WATER), verify you have the correct weight in tons and LCG-FP in feet from the white pages before starting any calculations. • Be sure all moments are computed as weight × LCG-FP about the forward perpendicular, and that you are using consistent units (tons and feet). • After computing the final LCG-FP (total moment ÷ total weight), compare it to the choices and check that it falls within the range of the individual tank LCGs you used—if it doesn’t, re-check your arithmetic.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The SS AMERICAN MARINER has the liquid load shown in table ST-0116 below. Use the white pages of The Stability Data Reference Book to determine the LCG-FP of the liquid load.

231.0 ft

234.3 ft

244.6 ft

251.5 ft
