The SS AMERICAN MARINER arrived in port with...

Question 1 / 2066636eec28f7522a1c51cb5e

Question 1 of 2066636eec28f7522a1c51cb5e

Load 140 tons---170 feet fwd of amidships Discharge 160 tons---60 feet fwd of amidship Load 140 tons---132 feet aft of amidships Discharge 230 tons---190 feet aft of amidships

Back

Question 1 of 20

66636eec28f7522a1c51cb5e

Load 140 tons---170 feet fwd of amidships Discharge 160 tons---60 feet fwd of amidship Load 140 tons---132 feet aft of amidships Discharge 230 tons---190 feet aft of amidships

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Use the American Mariner Stability Data Reference Book – Sheet 2 to get hydrostatic values (TPI, MCT 1", LCF) at the initial mean draft and at the final mean draft if needed. • Separate the problem into change of displacement (parallel sinkage/rafting) and change of trim due to longitudinal moments from each load/discharge. • Use the longitudinal moment = weight × distance from amidships and relate the net trimming moment to MCT 1" to find the change in trim, then distribute that trim between the bow and stern using the LCF position.

💭 Think About

• What is the vessel’s initial mean draft, and what hydrostatic values (especially TPI and MCT 1") does Sheet 2 give you at or near that mean draft? • If you total all the loads and discharges, what is the net change in weight and the net longitudinal moment about amidships? Be careful with signs: forward vs aft and load vs discharge. • Once you find the overall change in trim in inches, how do you convert that into separate changes at the forward and aft drafts, using the distance from LCF to each perpendicular?

✅ Before You Answer

• Verify your sign convention: forward of amidships and loads should create the correct direction of trim, and aft of amidships and discharges the opposite, or vice versa, but be consistent. • Double‑check that you used feet for distances, tons for weights, and converted the resulting trim from inches back into feet and inches when comparing with the answer choices. • After computing both the parallel change in draft (from net weight change using TPI) and the change in trim, confirm that the final FWD + AFT drafts give the correct mean draft that matches your new displacement.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

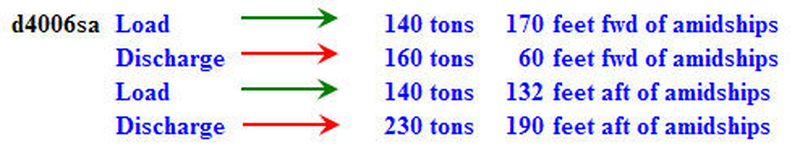

The SS AMERICAN MARINER arrived in port with drafts of: FWD 18'-06", AFT 20'-10". Cargo was loaded and discharged as indicated in table ST-0152 below. Use sheet 2 in the white pages of the Stability Data Reference Book to determine the final drafts. Load 140 tons---170 feet fwd of amidships Discharge 160 tons---60 feet fwd of amidship Load 140 tons---132 feet aft of amidships Discharge 230 tons---190 feet aft of amidships

FWD 19'-01", AFT 20'-00"

FWD 19'-03", AFT 19'-10"

FWD 19'-05", AFT 19'-08"

FWD 18'-11", AFT 20'-02"
