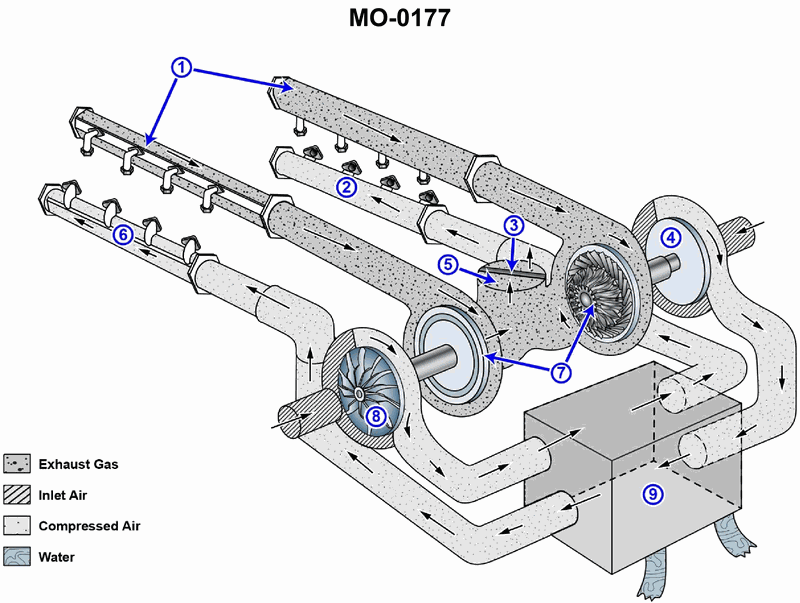

The sea-going tug to which you are assigned has main engines fitted with intake and exhaust systems as shown in the illustration. What statement is true concerning the turbocharger exhaust piping arrangements? Illustration MO-0177
• Exhaust gas flow paths from each cylinder bank to the turbochargers • How arrows and shading in the illustration distinguish exhaust gas from inlet and compressed air • The purpose of keeping exhaust manifolds from separate banks either separate or combined before entering a turbocharger
• Trace the shaded exhaust-gas paths starting at each cylinder bank manifold and follow the arrows all the way to each turbocharger turbine housing—does each turbo see gas from one bank or both? • Compare the upper and lower exhaust manifolds: do they remain isolated into different turbochargers, or do they merge into a common duct before the turbines? • Look closely where the exhaust ducts turn into the turbocharger turbine casings—can you see any crossover or mixing between the two sides?
• Verify which color/texture in the legend corresponds specifically to exhaust gas, not inlet or compressed air • Confirm whether there is any connection between the upper and lower exhaust ducts before they enter the turbochargers • Check carefully that you are looking at the turbine (exhaust) side, not the compressor (air) side, when deciding which bank feeds which turbocharger
