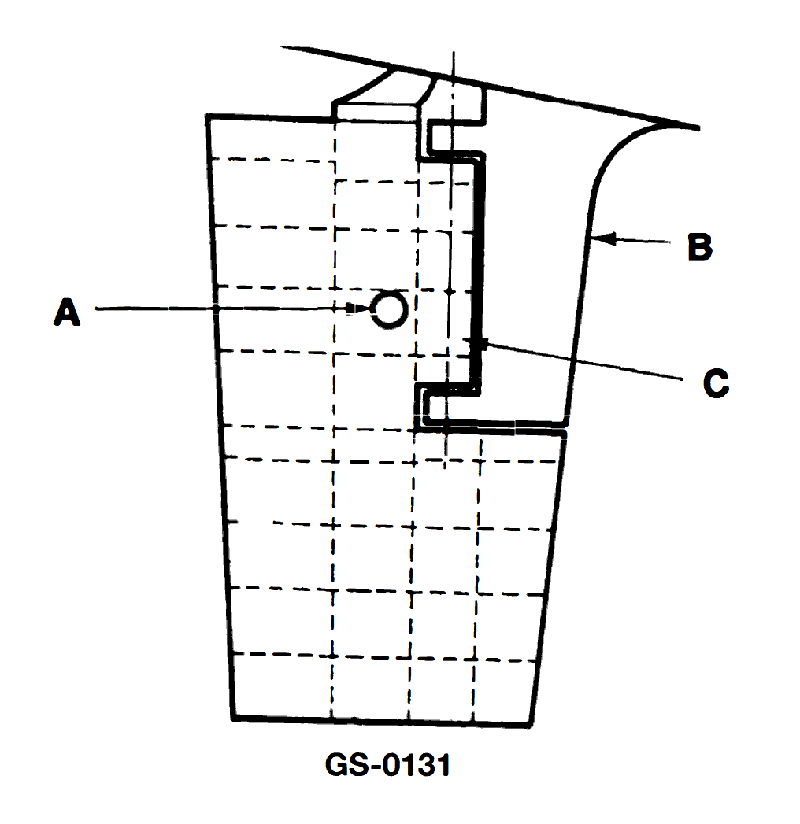

The rudder shown in the illustration is correctly termed a/an __________. See illustration GS-0131.

Back

Question 1 of 20

5eccef9cbacbc34ba4d45b91

The rudder shown in the illustration is correctly termed a/an __________. See illustration GS-0131.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Compare where the rudder stock (axis of rotation) is located relative to the total rudder area in the illustration. • Review the definitions of balanced, unbalanced, and semi-balanced rudders in terms of how much area lies forward of the stock. • Notice whether there is any separate flap or extra hinged surface that would suggest a special type (e.g., contra‑guided or flap) rudder.

💭 Think About

• On the sketch, does any significant portion of the rudder’s surface extend ahead of the turning axis, or is all of the area aft of that axis? • If some area is forward of the stock but the rudder is still partly supported by the sternpost/skeg, which standard rudder type matches that combination? • Do you see any secondary movable section on the trailing edge that would justify calling this a contra‑guided or special flap-type rudder? If not, which of the more basic three types is most reasonable?

✅ Before You Answer

• Identify the exact position of the stock (label A) and mentally divide the rudder area into forward vs. aft of that point. • Confirm whether any portion of the rudder edge projects ahead of the sternpost/skeg (label C) or whether it is all behind it. • Before choosing, rule out options that require features not actually drawn (such as a distinct flap or multiple moving parts).

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The rudder shown in the illustration is correctly termed a/an __________. See illustration GS-0131.

balanced rudder

unbalanced rudder

semi-balanced rudder

contra-guided rudder
