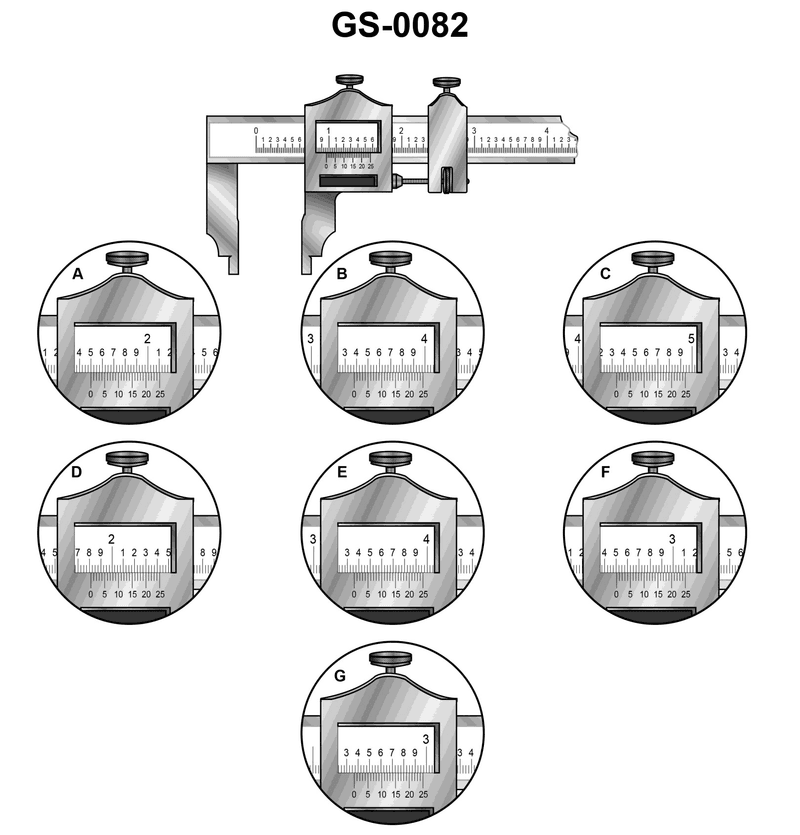

The reading on the vernier caliper scale shown in figure "E" in the illustration is __________. See illustration GS-0082.
