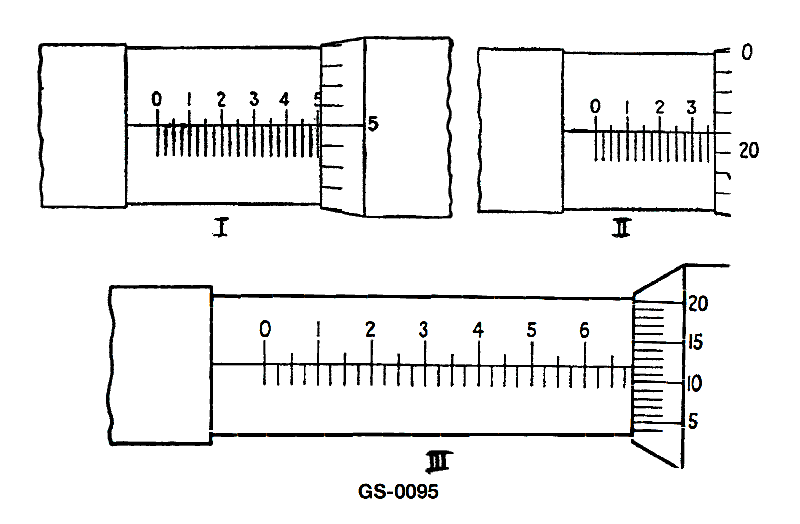

The reading on the micrometer scale shown in figure "III" in the illustration is __________. See illustration GS-0095.
