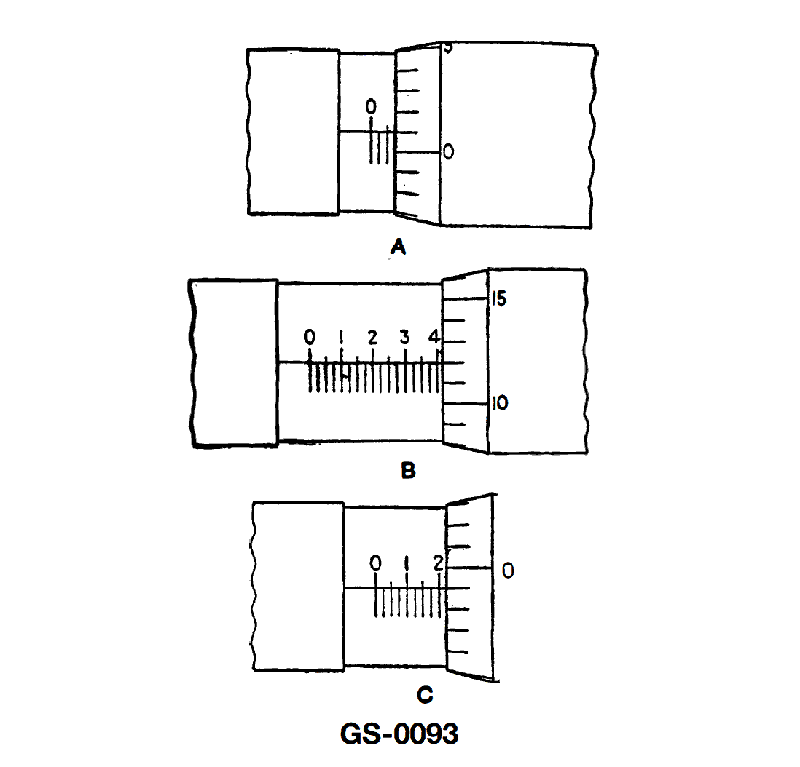

The reading on the micrometer scale shown in figure "A" in the illustration is __________. See illustration GS-0093.
