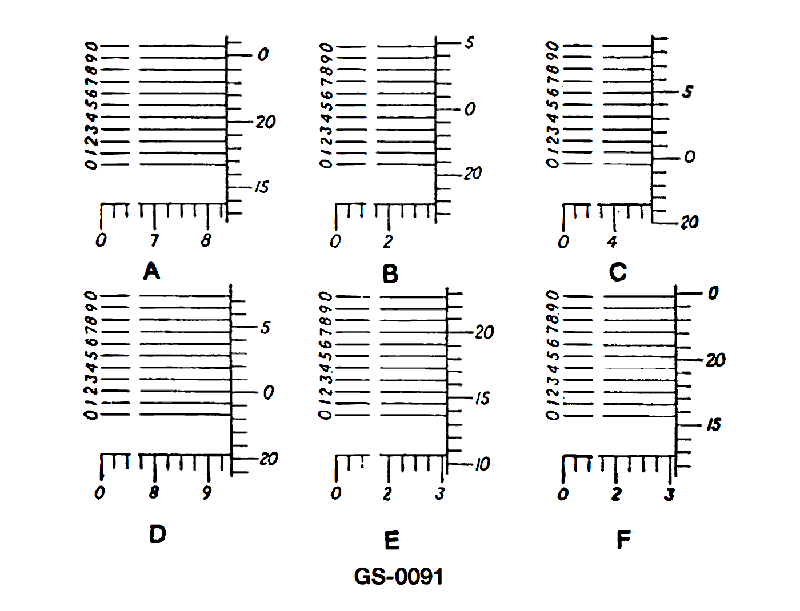

The reading indicated on a vernier micrometer caliper scale is .9453 inches. Which of the figures in the illustration represents this reading? See illustration GS-0091.

Back

Question 1 of 20

5eccef9bbacbc34ba4d45285

The reading indicated on a vernier micrometer caliper scale is .9453 inches. Which of the figures in the illustration represents this reading? See illustration GS-0091.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• How to read a micrometer sleeve scale (the fixed, lower horizontal scale) in thousandths of an inch • How to read the thimble/rotating scale (vertical scale) and then the vernier scale for ten‑thousandths (0.0001 in) • Breaking .9453 inches into sleeve + thimble + vernier parts (.900 + .045 + .0003)

💭 Think About

• First decide what value the fixed sleeve scale is showing just to the left of the thimble edge. About how many hundredths or thousandths does that represent? • Next, look at the rotating thimble scale: which line on that scale is aligned exactly with the sleeve reference line? How many thousandths does that add? • Finally, on the vernier, which fine line lines up exactly with a line on the thimble scale, and what ten‑thousandths (0.0001) value does that correspond to?

✅ Before You Answer

• Be sure the sleeve reading you choose is just BEFORE the thimble edge, not past it • Confirm that the aligned thimble line plus the sleeve value total approximately 0.945 inches before adding the vernier • Check that exactly one vernier line lines up perfectly with a thimble line and that this adds 0.0003 in, not 0.0001 or 0.0005

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The reading indicated on a vernier micrometer caliper scale is .9453 inches. Which of the figures in the illustration represents this reading? See illustration GS-0091.

Figure A

Figure C

Figure D

Figure G
