🔍 Key Concepts

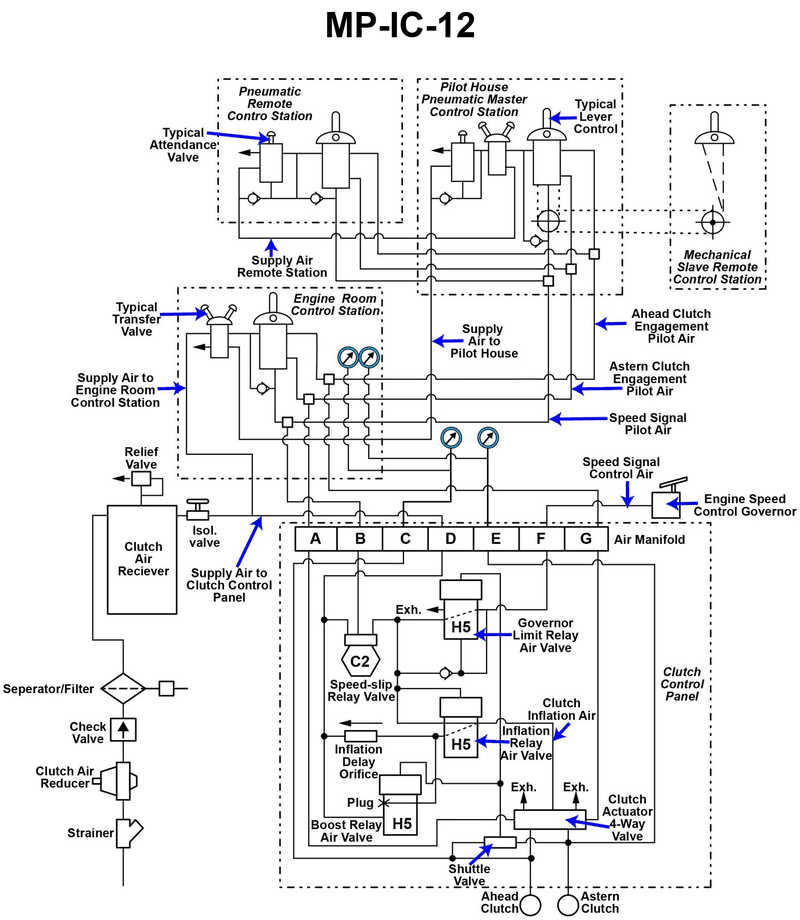

• Follow the air path from the compressor/receiver through the strainer, separator/filter, and reducer into the clutch control panel. • Think about what happens to pneumatic valves and clutch actuators if air contains moisture, dirt, or has the wrong pressure. • Relate this to general requirements for reliable control air systems on towing vessels (starting, shifting, and holding clutches in gear).

💭 Think About

• Looking at the diagram, why has the designer added a strainer, separator/filter, and reducer ahead of the clutch air receiver instead of just a single line with pressure control? • What failures or malfunctions could occur in the control valves, relay valves, and clutch actuators if the air is wet, dirty, or at incorrect pressure? • Which of the answer choices best matches the idea that all these downstream devices must operate reliably every time you shift gear?

✅ Before You Answer

• From the illustration, verify which components are installed to control pressure, which are for removing water, and which protect against dirt/particles. • Ask yourself whether any of these three (pressure, dryness, cleanliness) could safely be treated as "secondary" without risking clutch slipping, failure to engage, or sticking valves. • Check which option reflects that the entire clutch control panel and actuators depend on consistent, high-quality control air rather than just one property being important.
