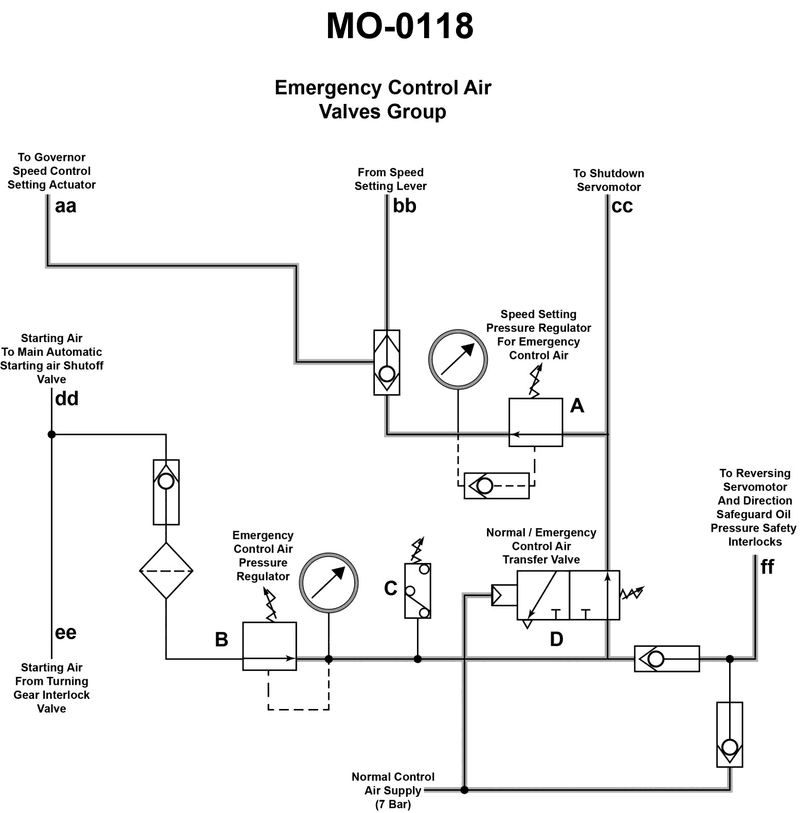

The pneumatic circuit shown in the illustration is part of a control system used with large low-speed diesel engines. The arrangement may be used to control __________. Illustration MO-0118
