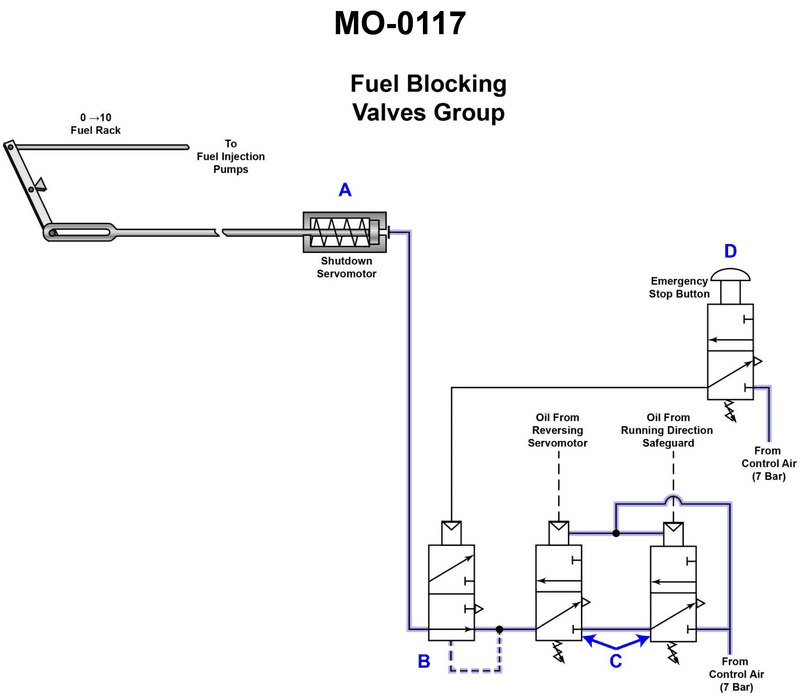

The pneumatic circuit shown in the illustration is part of a complex large low-speed engine control system. Which of the following statements describes the function of this circuit? Illustration MO-0117

Back

Question 1 of 20

66636eef28f7522a1c52009f

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Fuel blocking / shutdown circuits in low-speed diesel engines • The role of a shutdown servomotor (A) connected to the fuel rack • How an emergency stop valve/button (D) typically acts on control air to dump pressure and move a spring-loaded device to the shutdown position

💭 Think About

• Look at the labels and physical connections: what does the title Fuel Blocking Valves Group tell you about the main purpose of this circuit? • Trace the blue control-air line from the 7 bar supply: which component directly controls whether pressure is held on, or vented from, the shutdown servomotor at A? • Compare the functions: which option talks about normal reversing/camshaft shifting, and which options talk about removing air so the shutdown servomotor can relax and close the fuel rack?

✅ Before You Answer

• Identify which device is spring‑loaded and therefore will move to the fuel‑off position when air pressure is removed. • Confirm whether A is supplying a signal to the rest of the system, or simply receiving air to move the fuel rack. • Check how valve D is drawn: does it look like a manually operated emergency stop that connects the servomotor line either to supply air or to exhaust/vent when pressed?

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The piston labeled A provides a low-pressure signal to the other components illustrated.

The circuit shown is used to shift the camshaft position when reversing the engine.

Valve D, when depressed, allows the retained pneumatic pressure within the shutdown servomotor to be relieved.

When oil pressure to valve C is diminished, a pressure decrease is developed at valve D, causing it to shift, and nullifying the actuating signal to device A.
