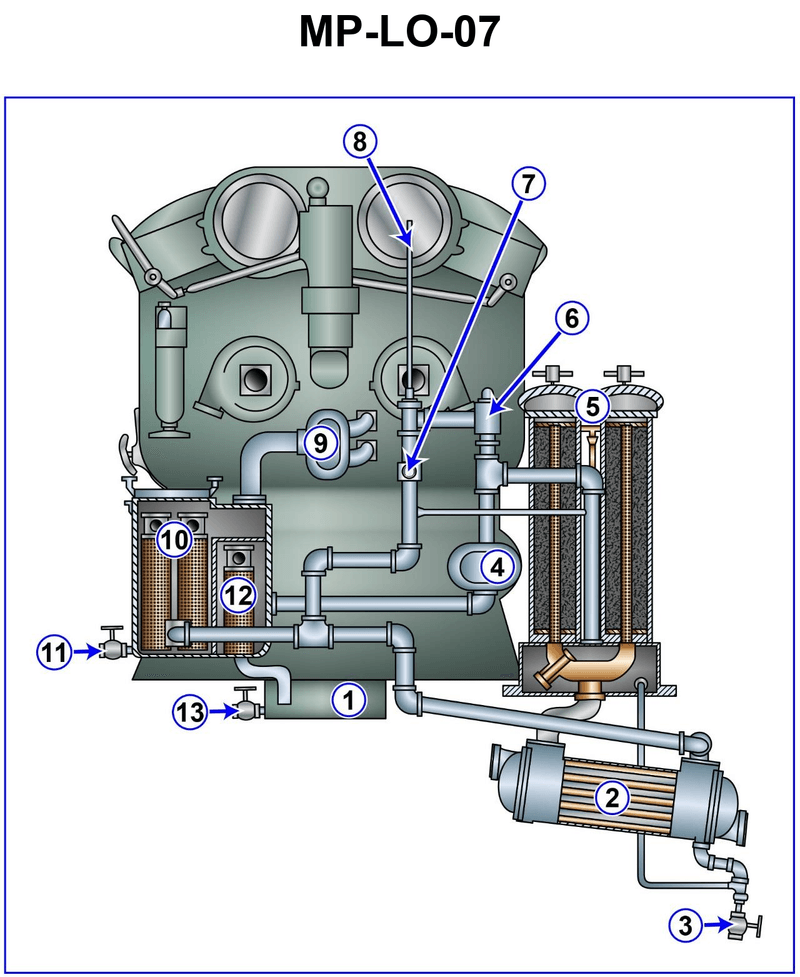

The main propulsion engines onboard your tractor tug use a lubricating oil system as shown in the illustration. What item number represents the lubricating oil filter? Illustration MO-0183

Back

Question 1 of 27070

The main propulsion engines onboard your tractor tug use a lubricating oil system as shown in the illustration. What item number represents the lubricating oil filter? Illustration MO-0183

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Follow the oil flow path from the sump, through the pump, cooler, and then to the engine galleries • Recognize the typical shape and location of a duplex lubricating oil filter on marine engines • Differentiate between a cooler, a strainer/suction screen, and a pressure-side filter in a lube oil system

💭 Think About

• Start at the lube oil sump and trace the piping to the pump and then toward the engine. At what point in that path would you most logically place a fine filter to protect the bearings? • Look at the tall vertical components on the right and left of the illustration. Which one appears to be arranged as a duplex unit that you could switch over while the engine is running? • Compare the shell-and-tube looking unit at the bottom with the vertical canisters. Which is more likely to be a cooler, and which is more likely to be a filter?

✅ Before You Answer

• Verify which numbered item is on the pressure side of the lube oil pump, just before oil enters the engine • Confirm that the component you choose has a changeover or isolation arrangement typical of duplex filters used for continuous operation • Make sure you are not selecting the lube oil cooler (shell-and-tube type) or a suction strainer in the sump instead of the fine filter
