🔍 Key Concepts

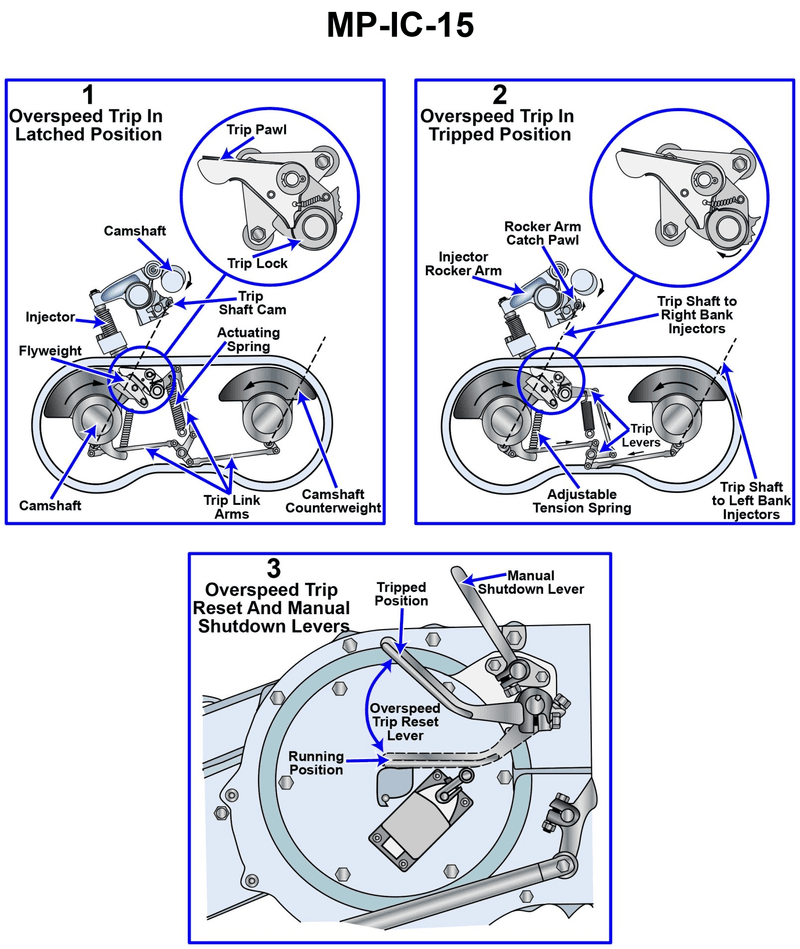

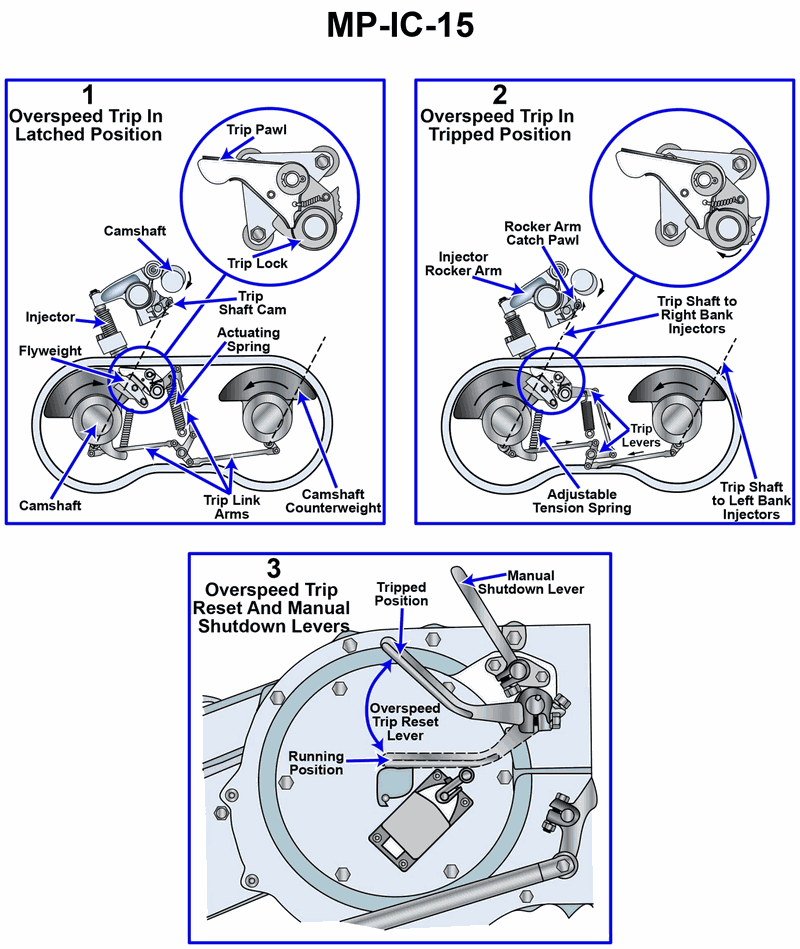

• Study how the trip shaft in the illustration is linked to the injectors on each bank. • Notice whether the overspeed device is acting on the injector racks (fuel control) or on the plunger motion itself. • Look for any sign of an electrical or solenoid component versus a purely mechanical linkage.

💭 Think About

• In the tripped position, what exactly moves on the injectors according to the arrows and labels in the figure? Does anything indicate that the plungers stop reciprocating, or that fuel control goes to a no‑fuel setting? • Does the system shown appear to shut off fuel individually at each injector, or by closing a common supply line? How can you tell from the components drawn? • Compare the latched and tripped positions: what change would actually stop fuel delivery while the camshaft and rocker arms still rotate?

✅ Before You Answer
