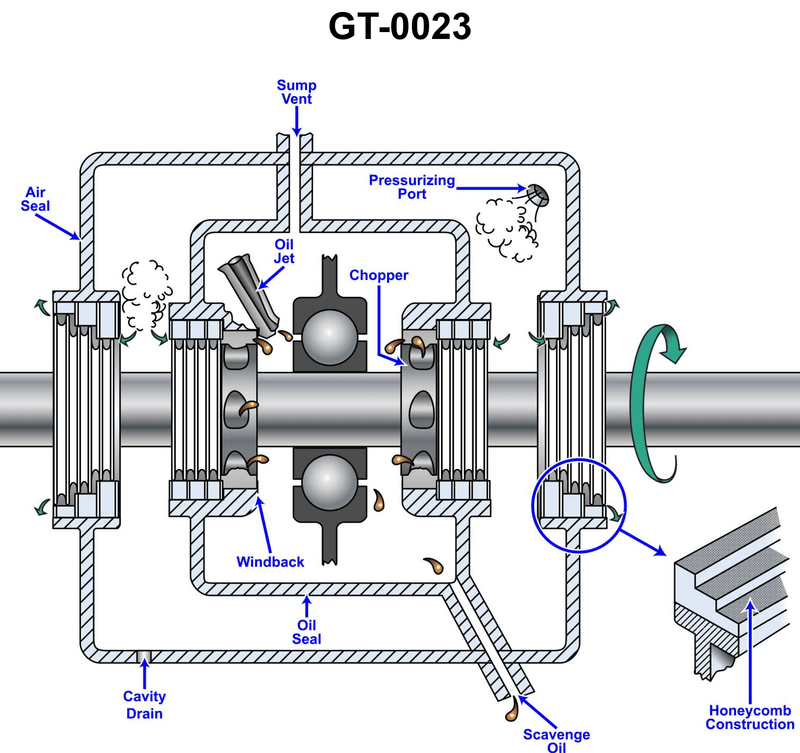

The lube oil system shown in the illustration, is designed to lubricate the main bearings by what principle? Illustration GT-0023
