Question 1 of 20

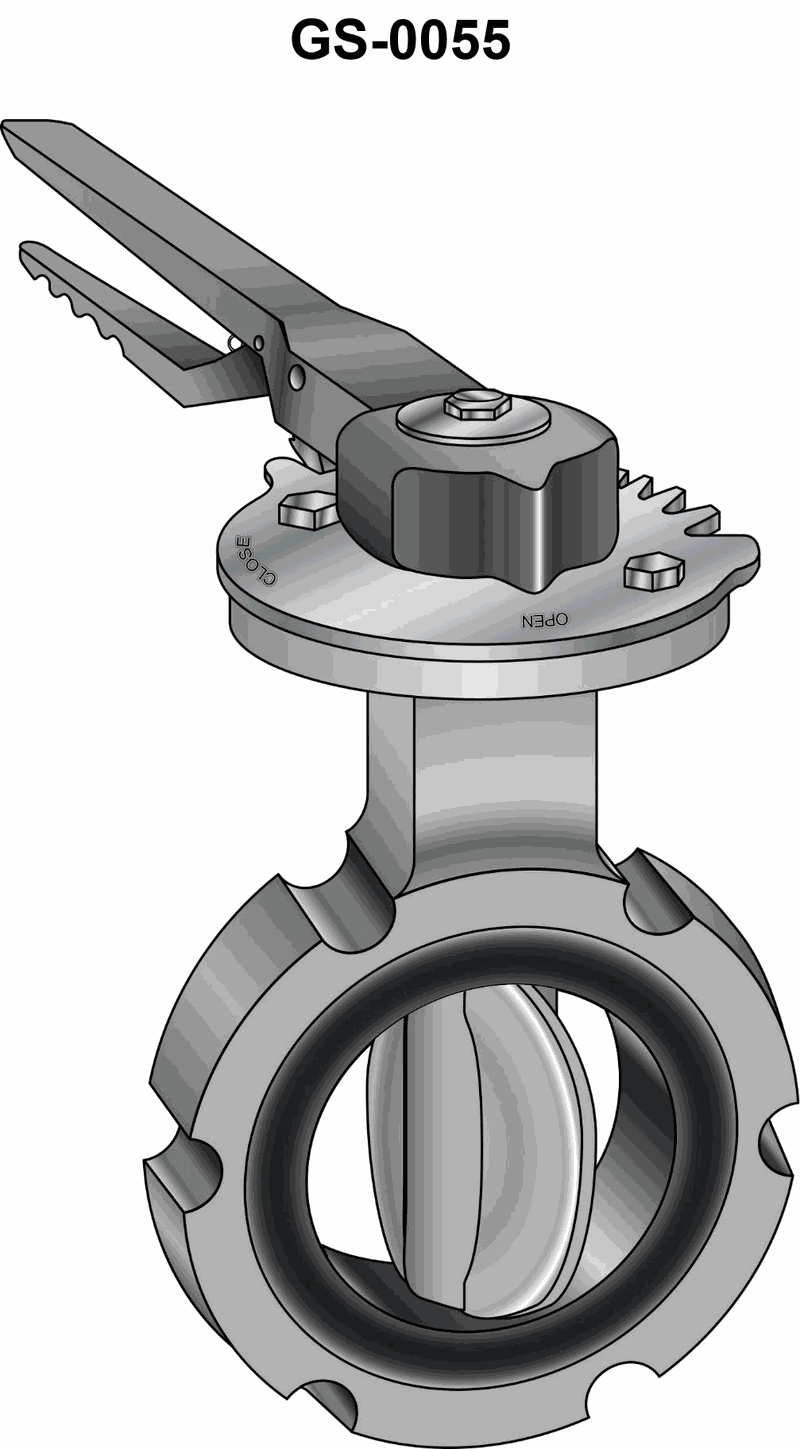

The illustrated valve is __________. See illustration GS-0055.

opened or closed by moving the control lever through one or more complete turns

required to be closed by moving the control handle counter clockwise

quickly opened when the control lever is rotated one full turn

quickly opened by moving the control lever by one-quarter of a turn
