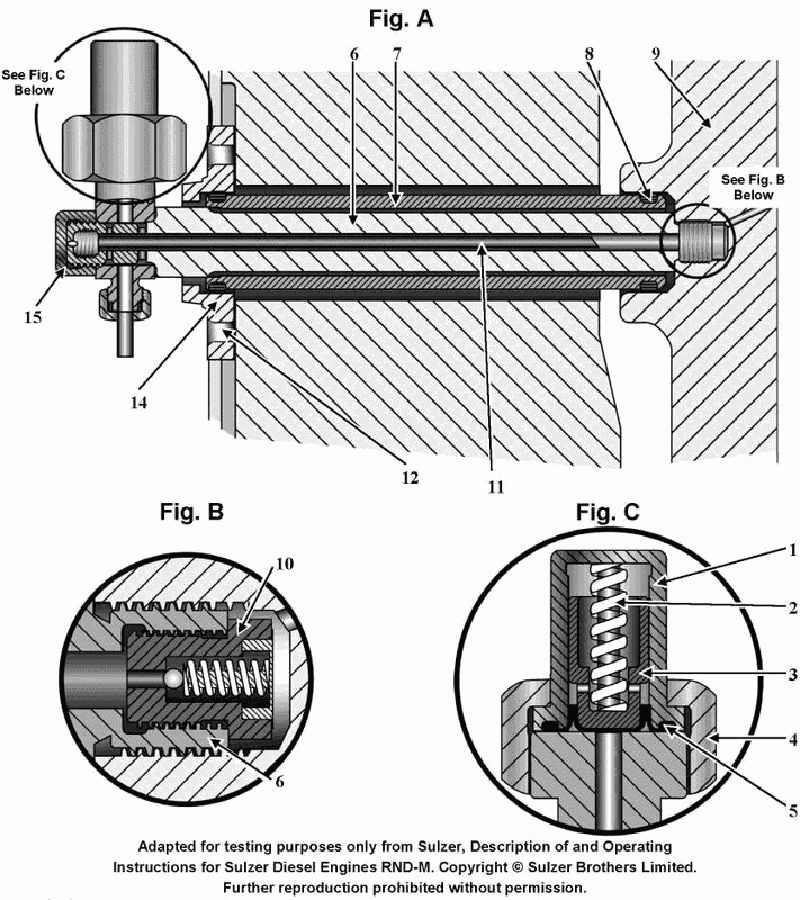

The illustrated cylinder lubricator quill check valve can be inspected without draining the cylinder cooling water jacket by __________. See illustration MO-0042.
