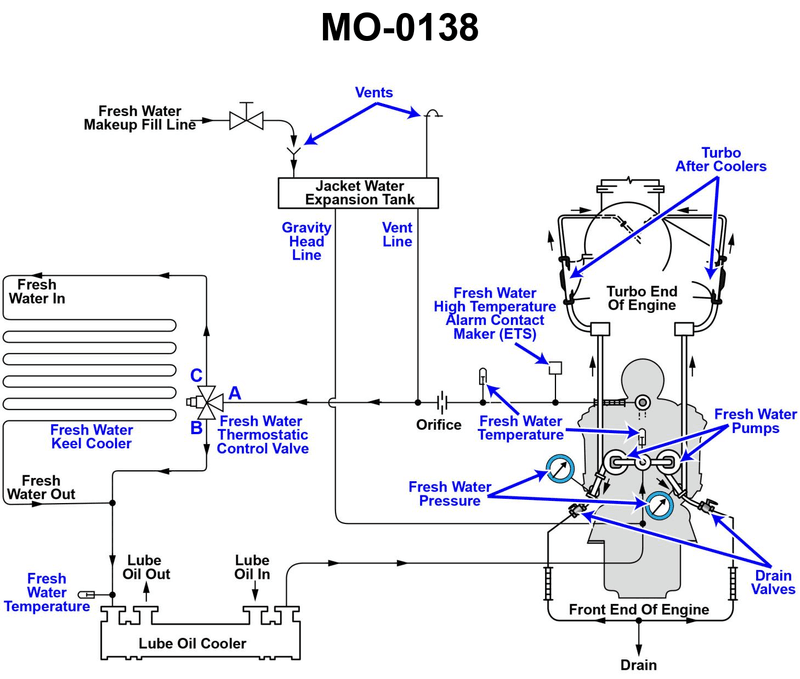

The freshwater cooling systems serving the main engines on your general-purpose supply vessel are arranged as shown in the illustration. If coolant drain valves are inadvertently opened during engine operation, what combination set of symptoms would most likely result? Illustration MO-0138
