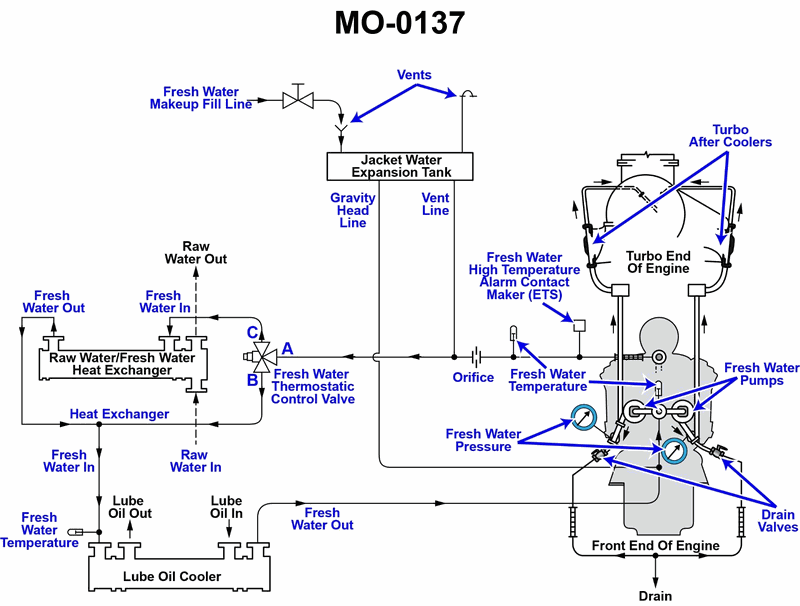

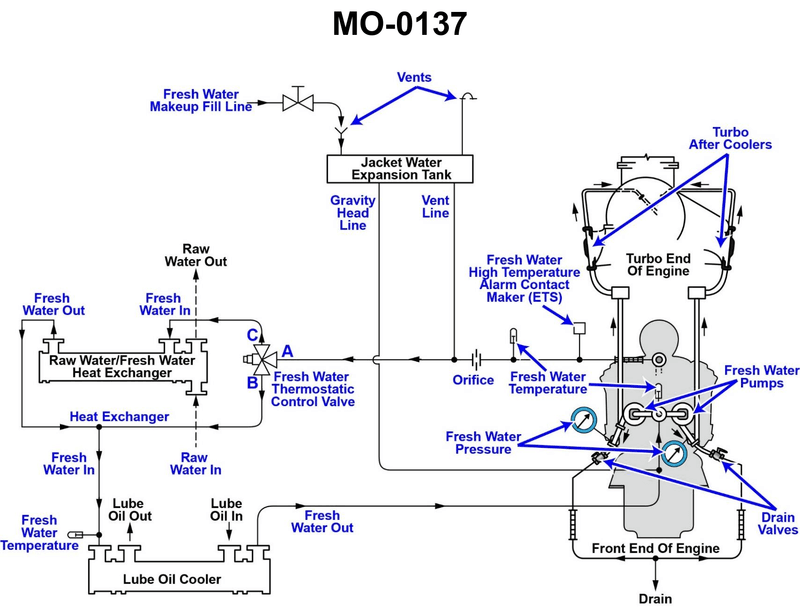

The fresh water cooling systems serving the main engines on your uninspected fishing industry vessel are arranged as shown in the illustration. If there is excessive scale build up inside the tubes of an engine's shell and tube RW/FW heat exchanger, while the engine is in operation, what would be the resulting symptoms? Illustration MO-0137

Back

Question 1 of 20

66636eef28f7522a1c51fbe8

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Heat transfer in a shell-and-tube heat exchanger (which side has the scale, and how that affects heat flow and temperatures) • Relationship between reduced heat transfer area and the temperature change (ΔT) on each side of the exchanger • How the engine jacket water (fresh water) temperature and raw water outlet temperature respond when cooling becomes less effective while flow rates stay about the same

💭 Think About

• If scale builds up inside the tubes, does heat move more easily or less easily from the fresh water to the raw water? Think about whether the engine’s fresh water will be cooled more or less than before. • With poorer heat transfer but roughly the same raw water flow, will the raw water coming out of the exchanger be hotter, cooler, or about the same as before? How does that affect its temperature rise? • If the engine is making the same amount of heat but the cooler is less effective, what happens to the temperature drop of the fresh water as it passes through the exchanger?

✅ Before You Answer

• Be clear which side is raw water and which side is fresh (jacket) water in the illustration before you decide. • Think about whether excessive scale acts more like an insulator or a conductor for heat between the two fluids. • Check that your choice matches a situation where overall cooling is less effective, not more effective, while the engine is still under load.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

A decreased temperature rise on the raw water side, and a decreased temperature drop on the fresh water side

A decreased temperature rise on the raw water side, and an increased temperature drop on the fresh water side

An increased temperature rise on the raw water side, and an increased temperature drop on the fresh water side

An increased temperature rise on the raw water side, and a decreased temperature drop on the fresh water side
