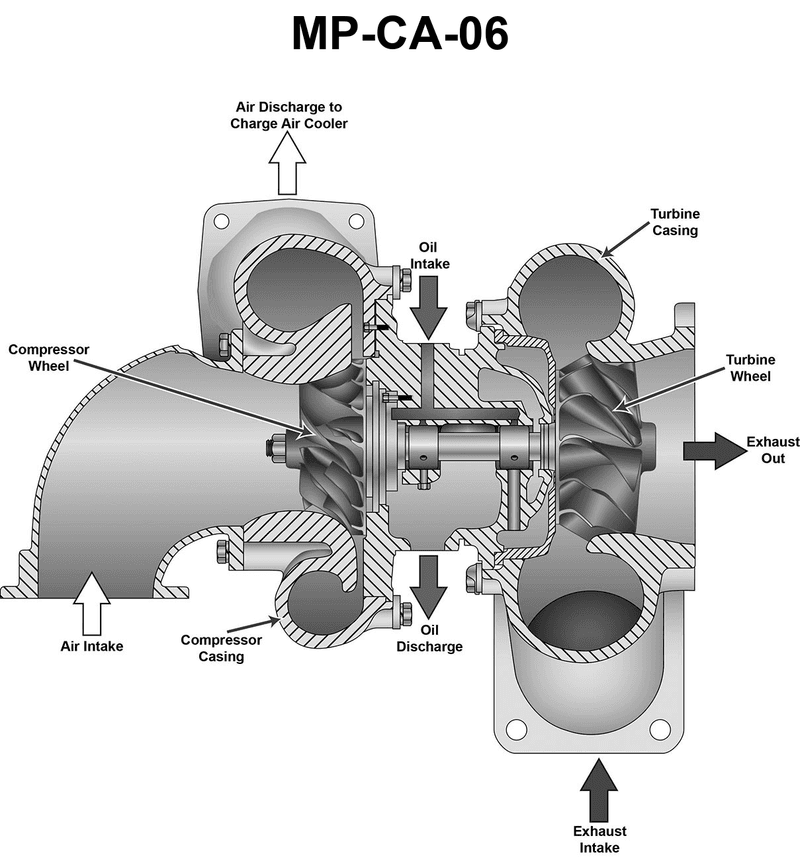

The fire pump drive engine on the salvage tug to which you are assigned is fitted with a turbocharger as shown in the illustration. What statement is true concerning this type of turbocharger? Illustration MP-CA-06
