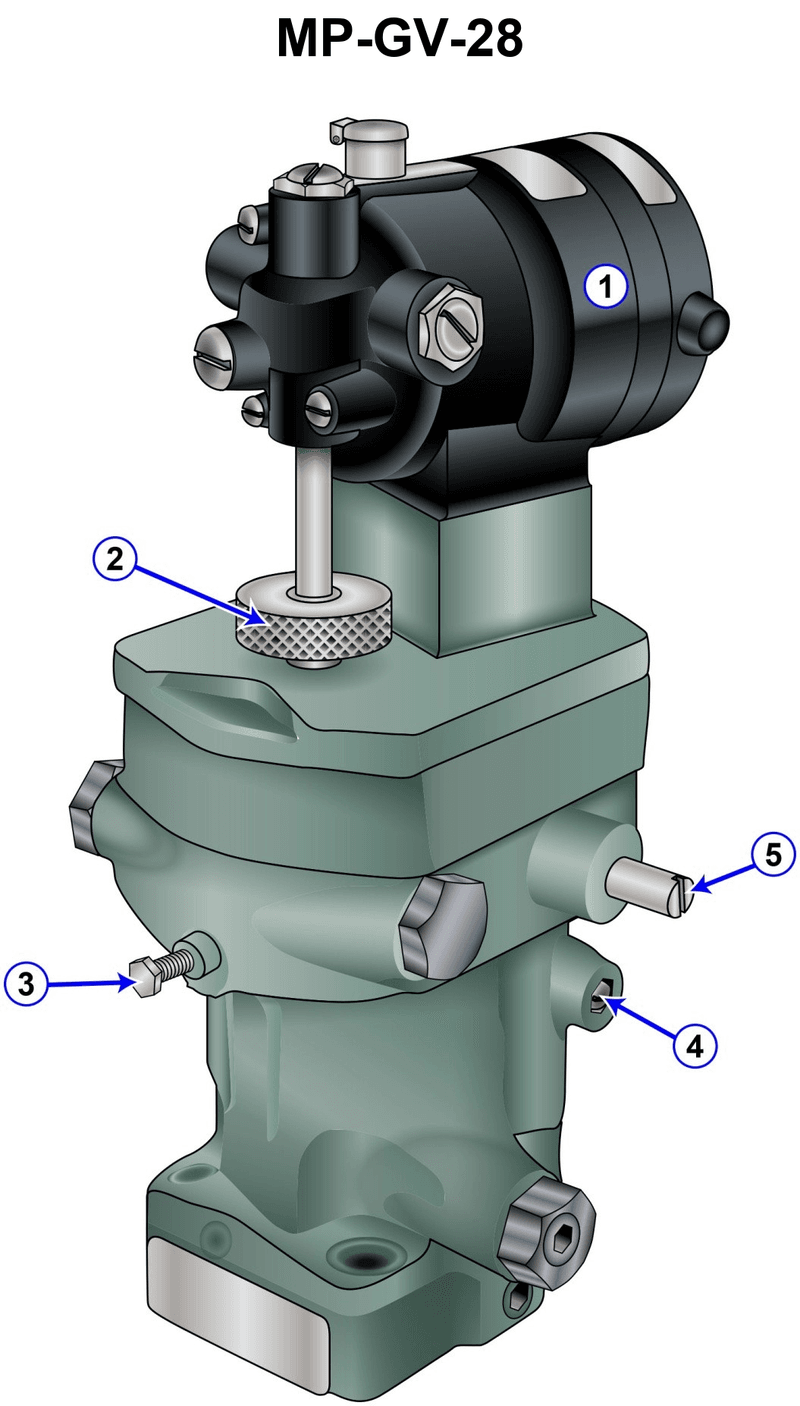

The diesel generators on your uninspected fishing trawler are fitted with speed control governors of the type shown in the illustration. If an adjustment is made to item #2, what will change? Illustration MO-0160
• Relationship between the governor speed-setting spring and the flyweights in a mechanical governor • Difference between governed (normal) operating speed, maximum overspeed stop, and minimum idle stop on a diesel generator governor • How moving the main adjusting collar/knob on the governor changes the equilibrium speed at which the flyweights and spring balance
• Look at where item #2 is located in relation to the governor spindle and spring. Is it acting on a stop screw, or is it shifting the whole spring assembly up and down? • Ask yourself: does turning item #2 change only an upper or lower limit, or does it shift the entire normal running speed point of the governor? • Which choice describes a continuous adjustment of normal operating speed, versus fixed limit adjustments for high speed, low speed, or load-sharing droop?
• Verify whether item #2 is connected directly to the speed-adjusting spring rather than to a separate stop screw. • Confirm that items #3 and #4 look more like limit screws (end stops) while #2 appears as a knurled adjusting collar meant for frequent or fine adjustment. • Decide which answer choice matches an adjustment that would be used routinely to set the generator’s normal governed speed for proper frequency (e.g., 60 Hz).
