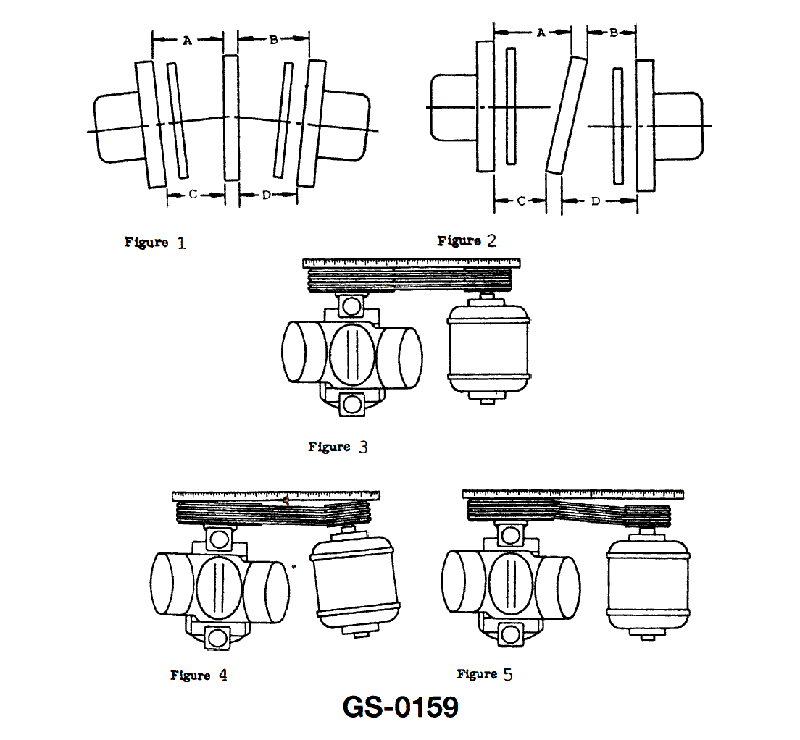

The compressor in figure 4, if permitted to operate as illustrated will __________. See illustration GS-0159.

lose its volumetric efficiency

damage the bearings of the motor

trip the breaker when being restarted for the first time after replacing the belts

result in a constant enlargement of the clearance expansion volume
